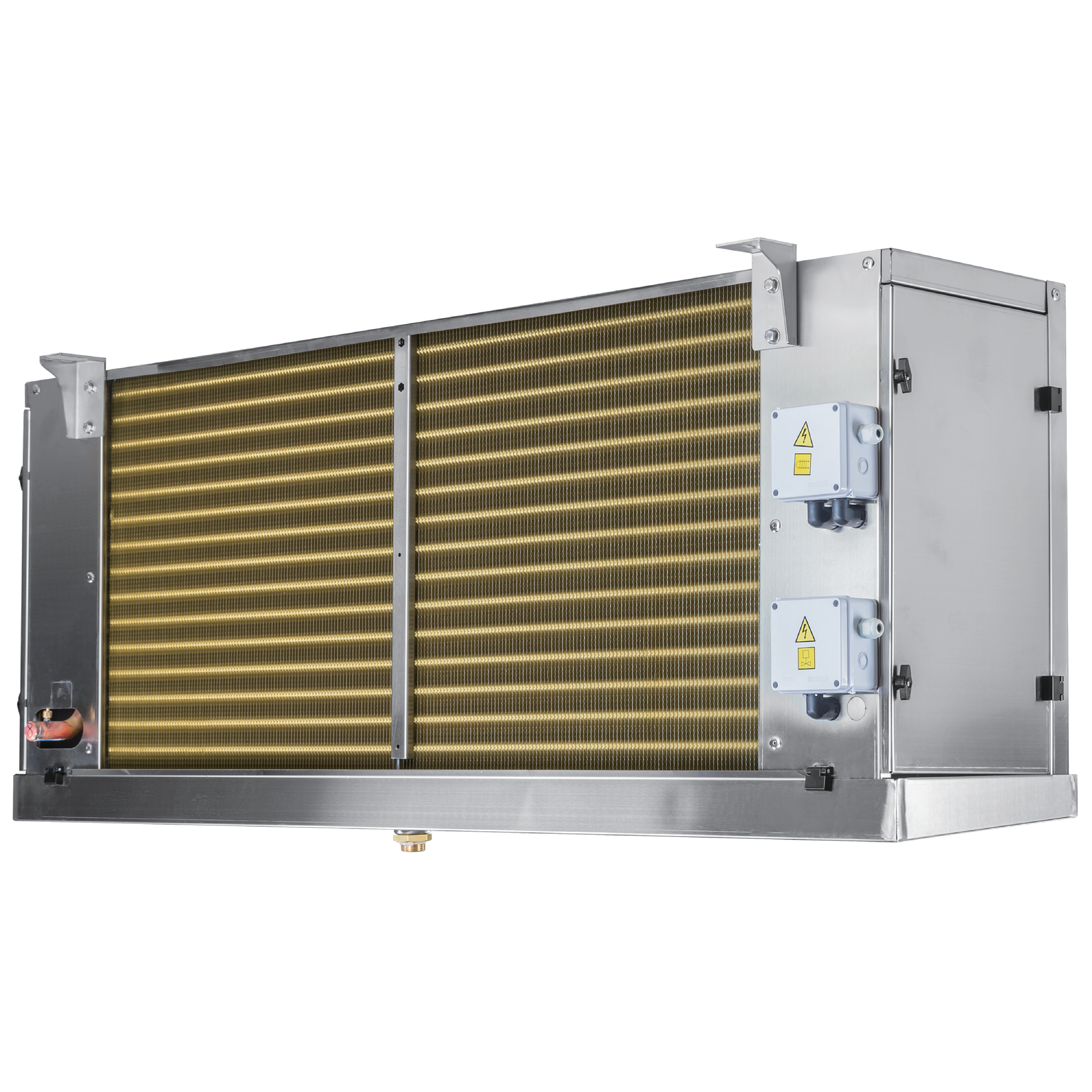

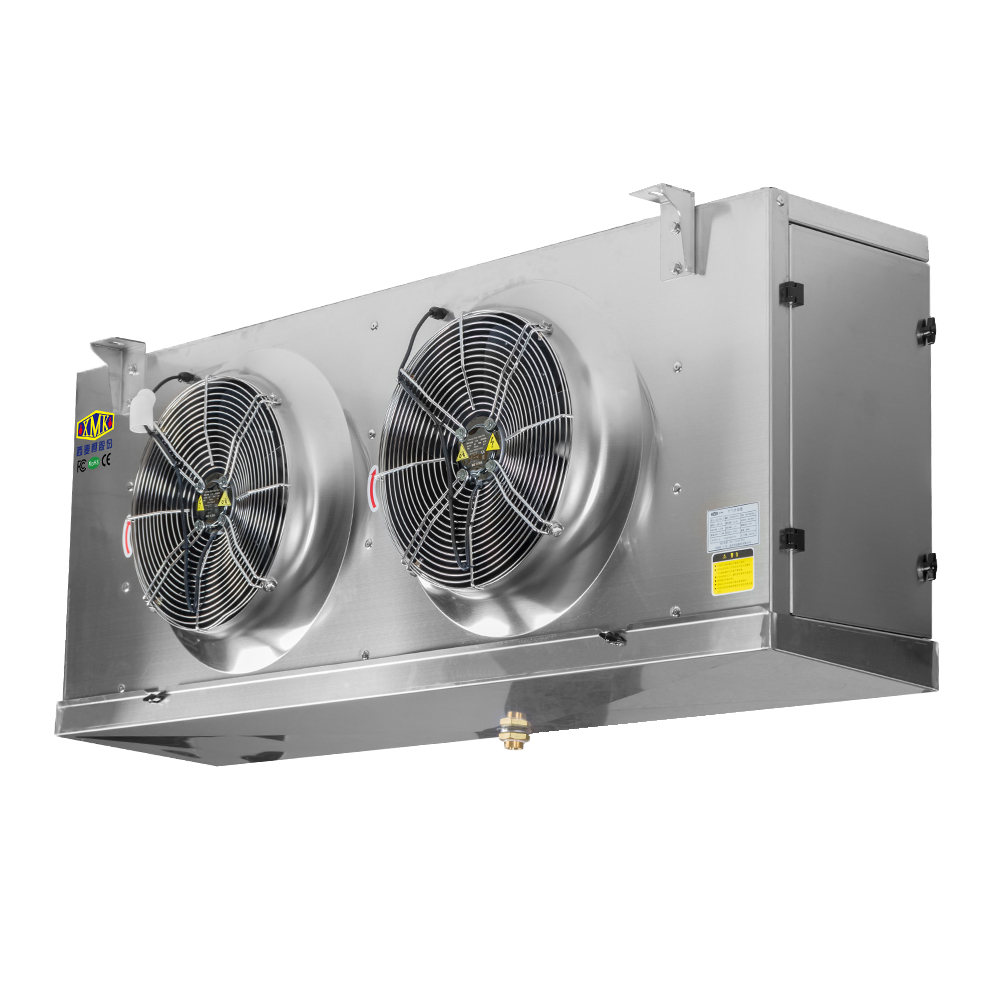

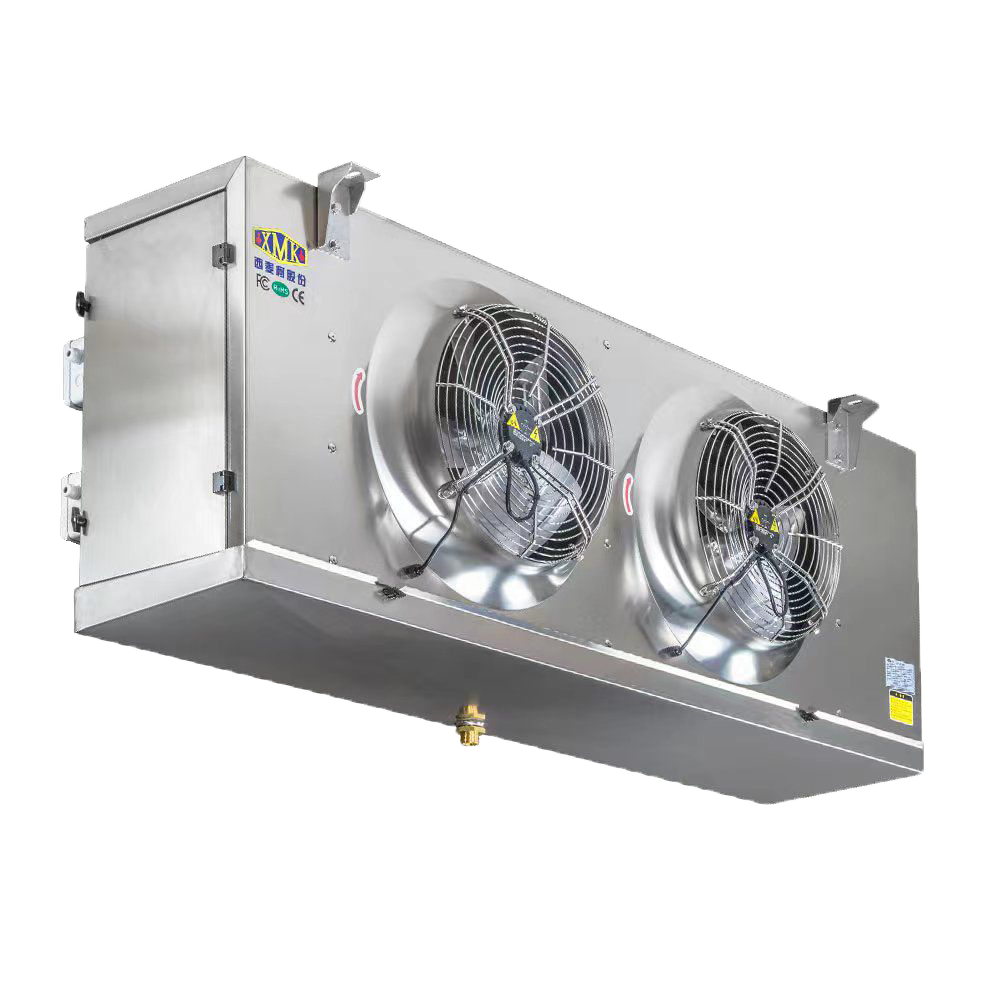

Series Ceiling Type Air Cooler

1. Casing: Adopt High-quality 304 stainless steel plate, with super strong anti-corrosion performance; The cover plates on both sides and the outer water tray plate adopt a hinged structure, which is convenient and fast to operate. 2. Heat Exchanger Coil: 304 stainless steel pipes ⌀15. Square arrangement with a spacing of 50 ×50 between pipes; The operating pressure of stainless steel pipes can reach up to 5Mpa, and the burst pressure can reach up to 50Mpa. Floating coil pipes are fully automatic argon arc welding 304 stainless steel fins with pitch of 4.0mm and 6.0mm; Direct expansion supply liquid 3. Fan: Axial fans, designed for high power and high wind pressure; The mesh cover and fan blades are made of 304 stainless steel material; Operating temperature: -40 C° to 60 °C; Independent junction box; Fan specifications ⌀400 ⌀500 ⌀630 4. Defrosting: The standard adopts electric defrosting, with stainless steel heating tubes evenly distributed in the fins of the coil and on the inner water plate, and an independent heating tube junction box. 5. It's can meet the requirements of refrigerants such as R404A, R507A. R448A, R449A, R134a, R22and other refrigerants. 6. Applicable Industries: Chemical cold rooms, pharmaceutical cold rooms, oil companies and food preservation. Quick and easy installation.
