Products / Condensing Unit

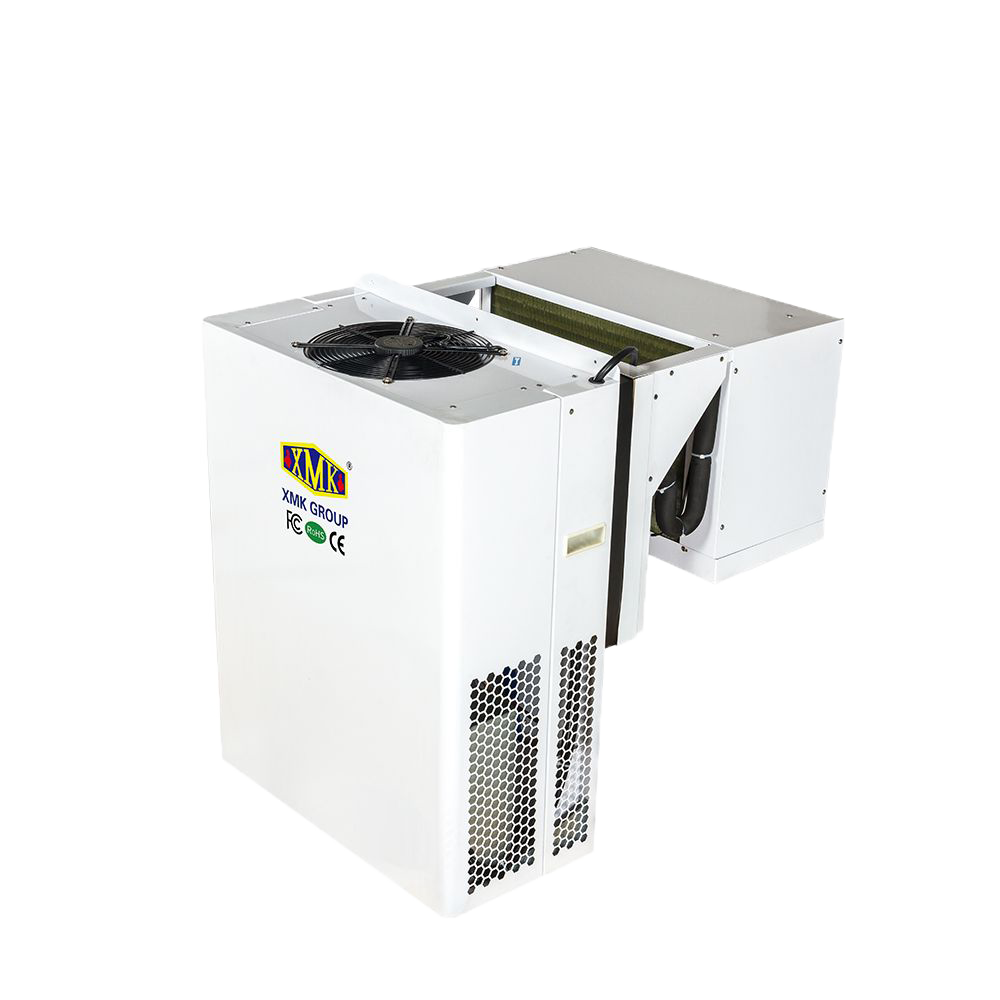

A wall-mounted monoblock that combines the compressor, condenser, evaporator, valves, and controls in one compact structure for direct cold-room refrigeration. Medium- and low-temperature configurations support chilled and frozen storage.

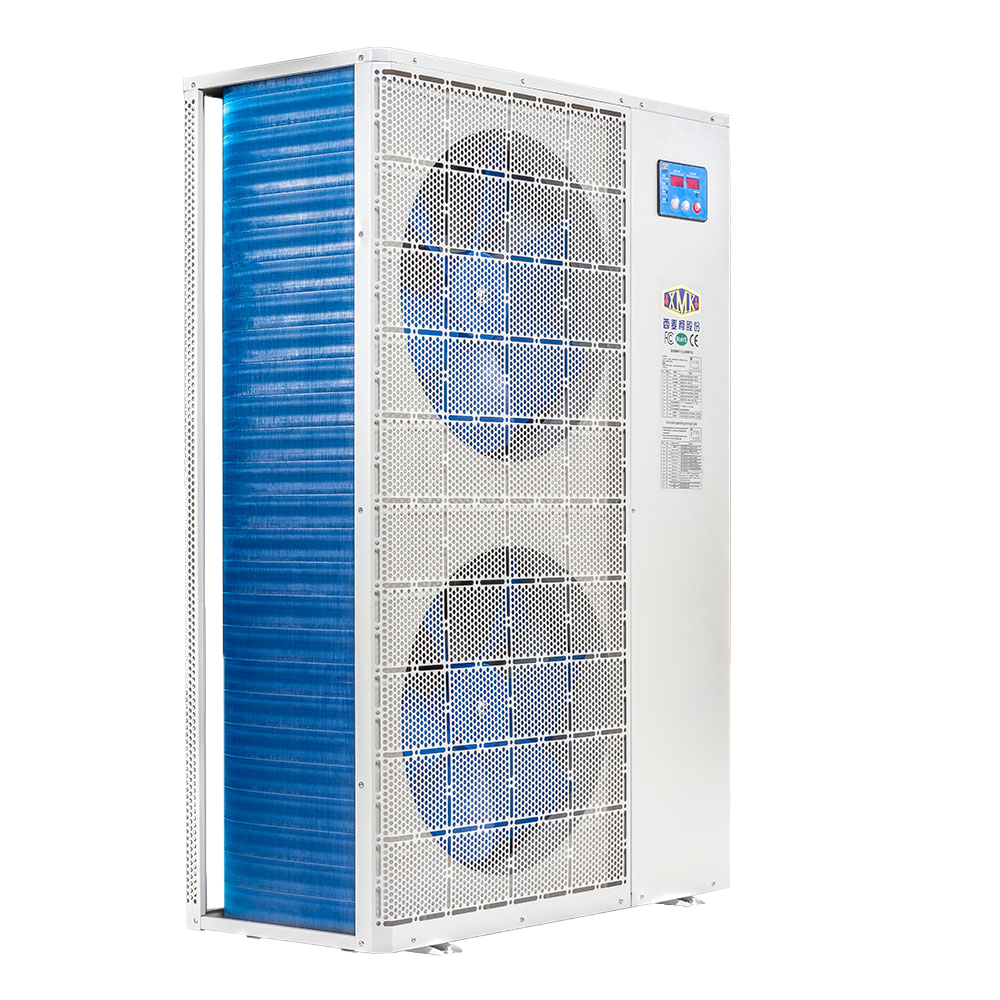

The HX series of seafood chiller developed by our factory, which designed into an overall compact structure with a beautiful and exquisite structure. It's including the condenser, titanium gun evaporator, various valves and control systems. Which can be directly used in fields such as seafood farming. 1. The product can be wall-mounted or vertical, and the unit is installed on the ground and the side of the wall. 2. The product can adjust the temperature of cold and warm water, and the water temperature can be adjusted between 5 and 40 degrees. 3. The product is fully automated and intelligently controlled, with control functions such as water temperature setting and control, constant temperature setting and system operation protection.

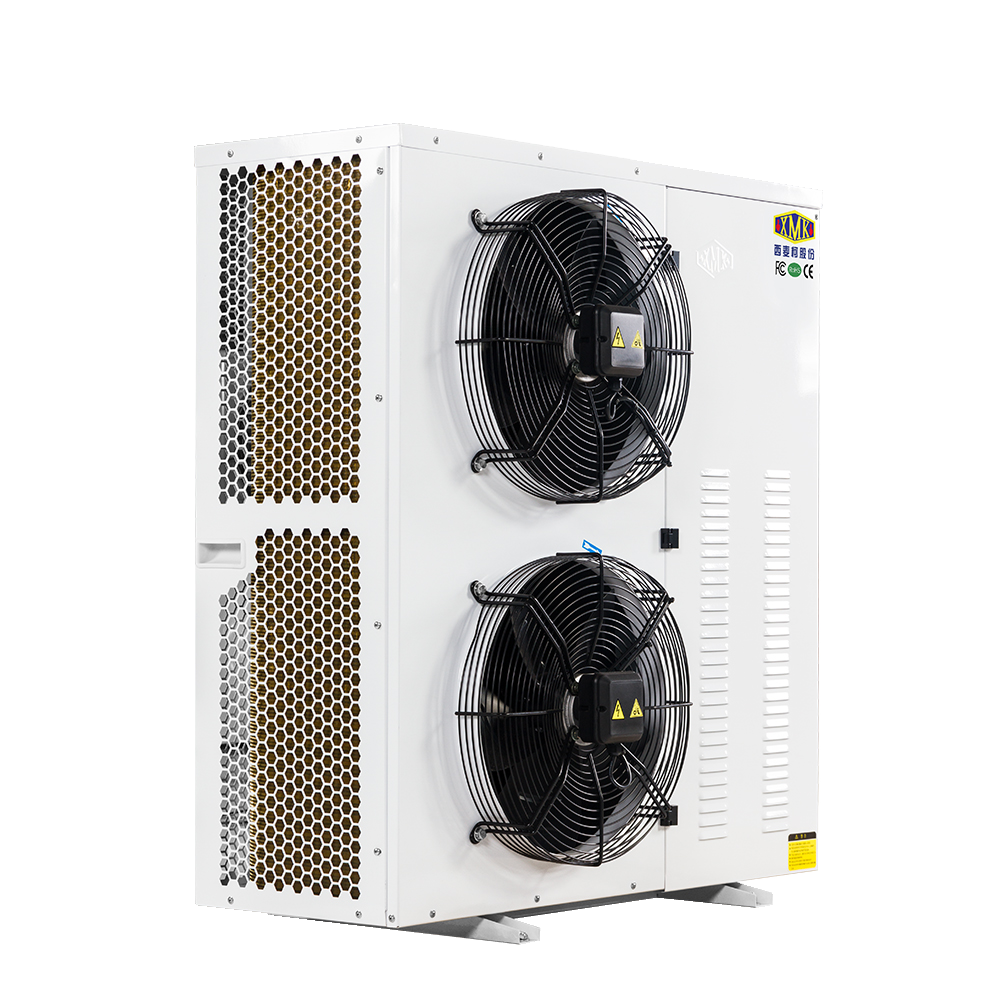

BUW-A series box-type condensing units have the following characteristics: 1. Products adopt vertical box-type structure, compact structure design, excellent appearance. 2. The cover of the case adopts hinge structure, which is easy to maintain and operate. 3. Compressor uses Emerson ZB series scroll compressor and ZSI series scroll compressor with DTC spray to meet the application of medium temperature and low temperature respectively. 4. Adopt L-type condenser, it has large windward side, small wind resistance and good heat transfer effect. 5. Adopt 6-pole external rotor motor with low speed and low noise. 6. It can meet the requirements of R22. R404A. R507A. R448A. R449A and other refrigerants.

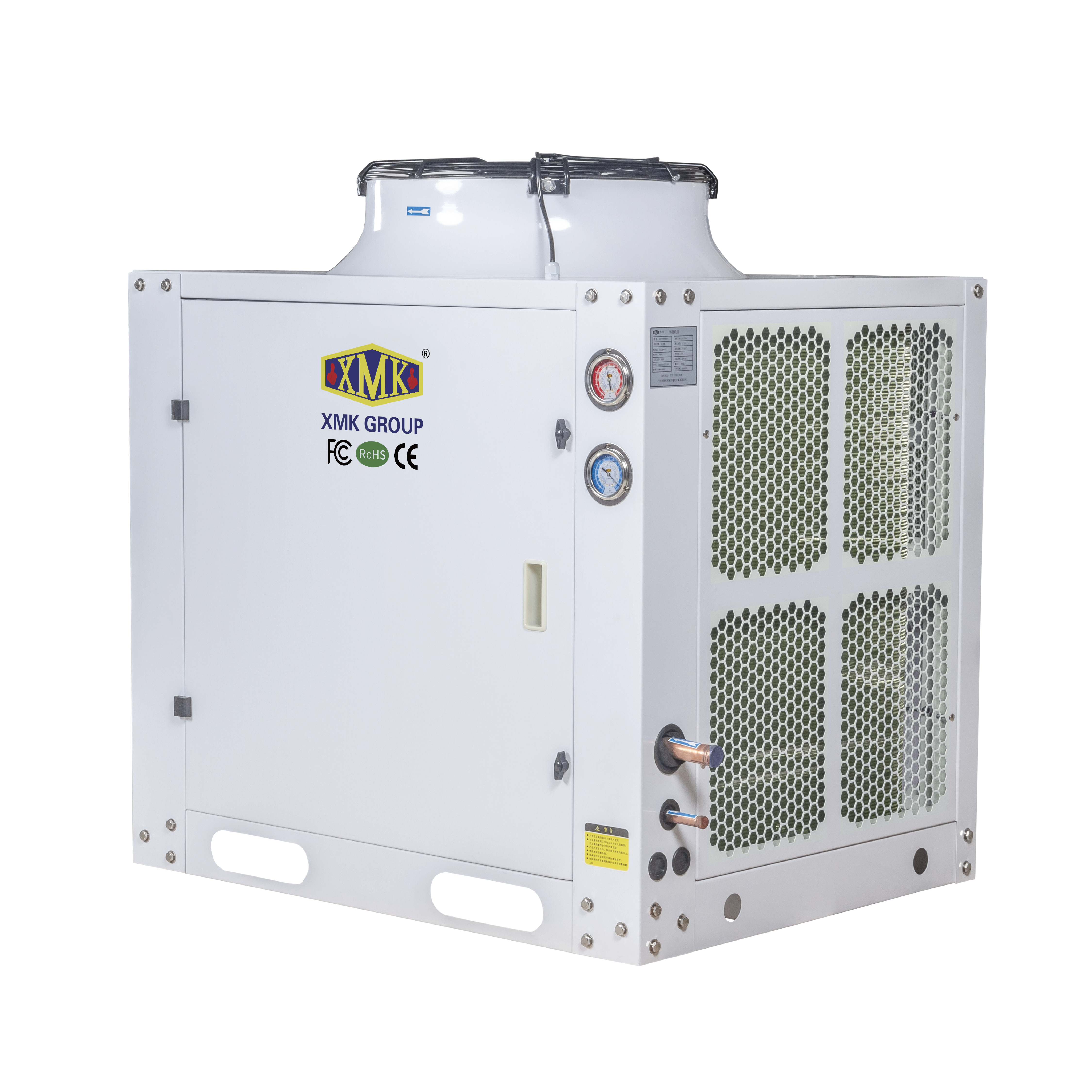

BUW-B Series Horizontal Box-Type Unit with Scroll Compressor have the following characteristics: 1. Products adopt horizontal box-type structure, high wind circle design, excellent appearance. 2. The cover of the case adopts hinge structure, which is easy to maintain and operate; 3. Compressor uses Emerson BZ series and ZSI series with DTC spray & ZFI series with EVI scroll compressor to meet the application of medium temperature and low temperature respectively. 4. Adopt L-type condenser, ti has large windward side, smaLl wind resistance and good heat transfer effect. 5. It can meet the requirements of R22, R404A, R507A, R448A. R449A and other refrigerants.
1. This series of products si mainly developed for cold storage applications. 2. The unit adopts Danfoss or Emerson fixed frequency scroll compressor. 3. Air conditioning type case is adopted, Adopted 6-pole low speed and low noise fan, It is very suitable for residential area. 4. it can meet the requirements of R404A. R507A, R22 and other refrigerants.

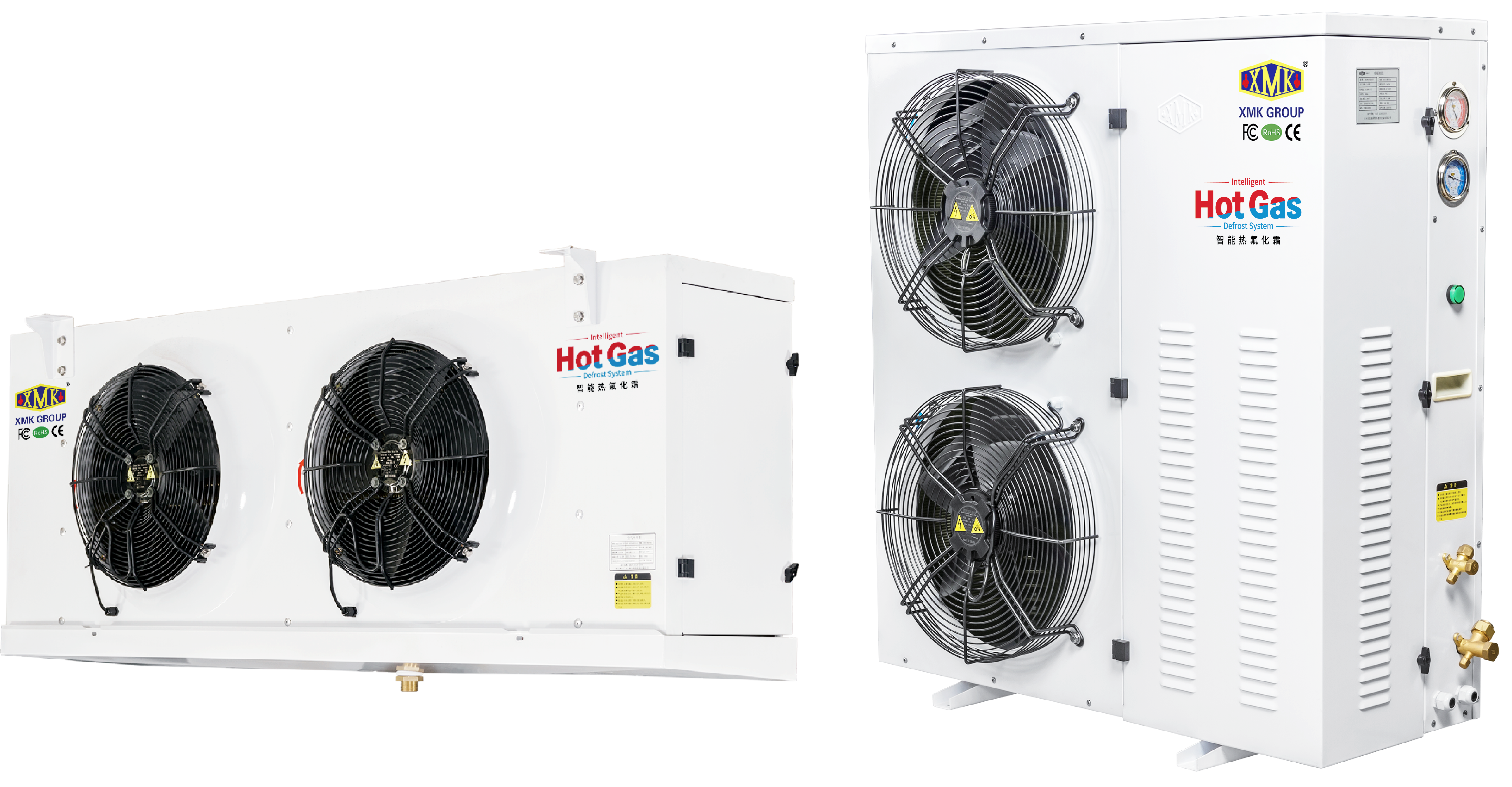

It is widely used in scenarios such as fruit, vegetable and aquatic product preservation, medical vaccine storage, and fungus cultivation and breeding. 1. This complete set of units adopts advanced thermal fluorine defrosting technology to achieve on-demand defrosting, no frost, and short defrosting time. During defrosting, the unit operates in heat pump mode, absorbing heat from the outside for defrosting, and defrosting consumes less power. After defrosting, Small temperature fluctuation with the cold room, saving energy and reducing carbon emissions. 2. During the thermal fluorine defrosting process, the oil accumulation on the inner wall of the air cooler or aluminum row is effectively removed to improve the heat exchange efficiency of the air cooler. 3. Gentle defrosting: the refrigerant hot gas temperature and mass flow rate gradually increase; the thickened air cooler copper tube is more resistant to cold and hot shocks. 4. Improve heat exchange efficiency: Using EVI economizer, the cooling capacity is increased by more than 20%, the energy efficiency is increased by more than 15%, which is much higher than the cooling capacity and energy efficiency improvement of the flash tank, and the EVI (Enhanced Vapor Injection) intervention timing is reasonable to achieve energy saving and emission reduction. 5. The electronic expansion valve PID coefficient is reasonable and the response speed is fast. It uses a low-temperature special compressor for R507/R404A refrigerant. 6. Simplified operation and maintenance: pre-charged with refrigerant, easy installation, only need to connect the liquid supply and return steam pipelines; remote monitoring, can detect various parameters in real time through a computer or mobile phone, remote start and stop; remote monitoring, can detect various parameters in real time through a computer or mobile phone, remote start and stop; It has the function of pump-down and timed start and stop.

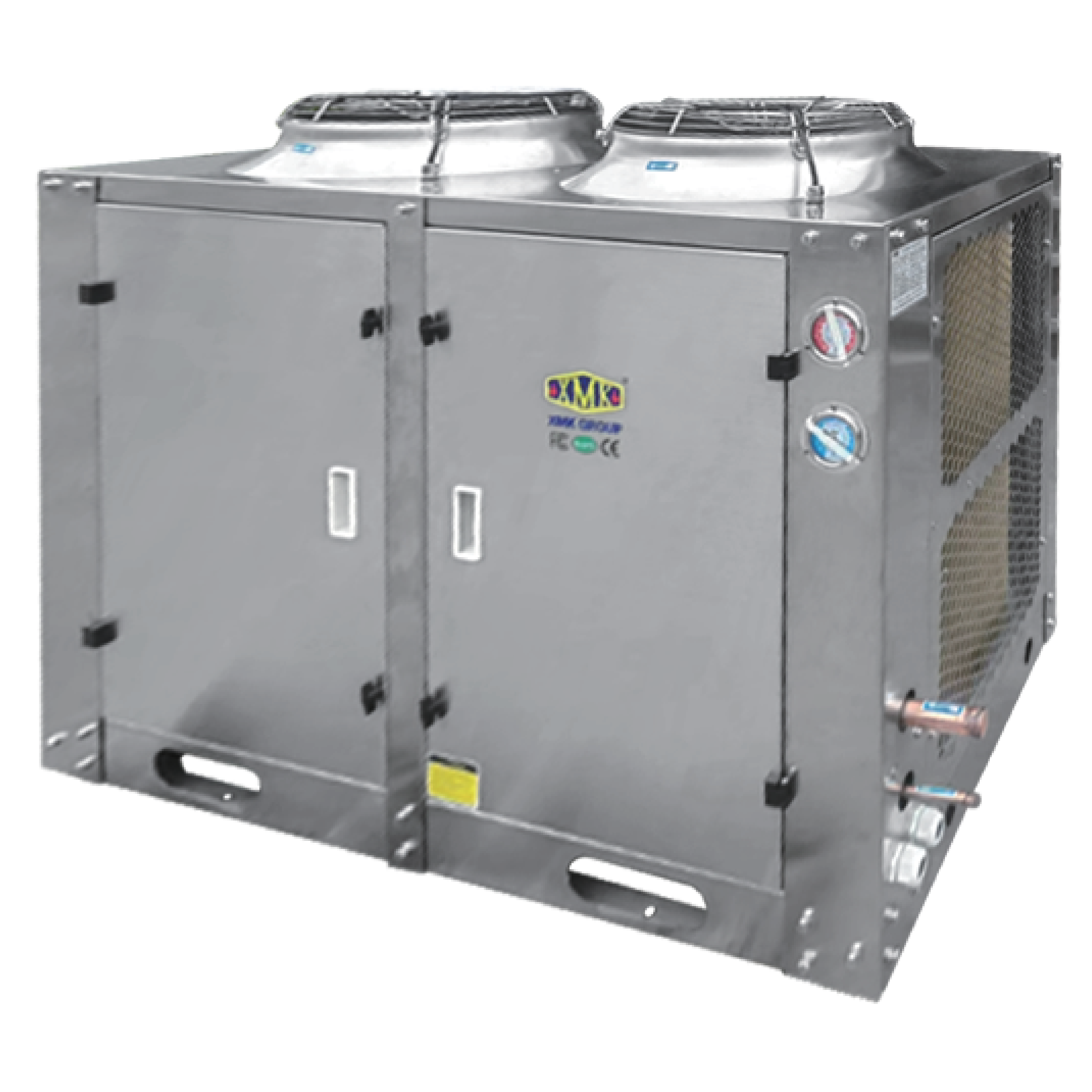

BUB series horizontal box-type condensing units have the following characteristics: 1. Products adopt horizontal box-type structure, high wind circle design, Excellent ventilation effect and appearance. 2. The cover of the case adopts hinge structure, which is easy to maintain and operate. 3. Adopted semi-hermetic piston compressors with BITZER or FRASCOLD to meet the application of medium temperature and low temperature respectively. 4. Adopted U-type condenser, it has large windward side, small wind resistance and good heat transfer effect. 5. It can meet the requirements of R22. R404A. R507A, R448A. R449A and other refrigerants.

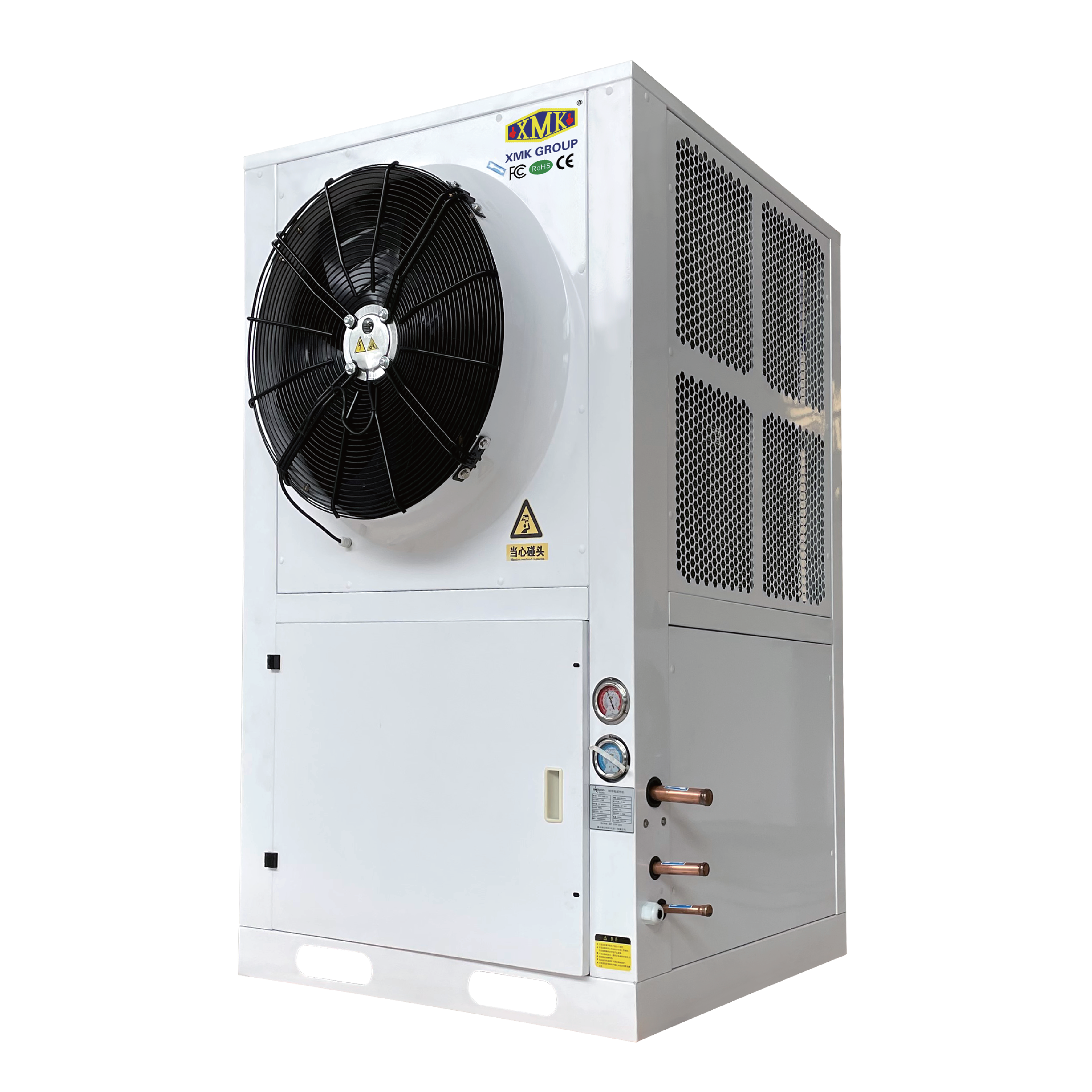

PU series vertical box-type condenssion units have the following characteristics: 1. The product adopts vertical box-type structure, fan side installation, effectively prevent dust, rain water and so on into the cabinet. 2. High air duct design, low noise, beautiful appearance. 3. The cover of the case adopts hinge structure, which as easy to maintain and operate. 4. Compressor uses Emerson ZB and ZFI series scroll compressor or Bitzer semi-hermetic compressor to meet the application of medium temperature and low temperature. 5. Adopt U-type condenser, it has large windward side, small wind resistance and good heat transfer effect. 6. It can meet the requirements of R22. R404A. R507A. R448A. R449A and other refrigerants.
Industrial air cooled water chiller series is used to manufacture water which below normal temperature. It is mainly used to cool the moulds of plastic processing machinery. It can greatly improve the surface smoothness of plastic products, reduce the surface markings and internal stress of plastic products, keep the products from shrinking and deforming, facilitate the demoulding of plastic products and accelerate the product finalization, thus greatly improving the production of plastic forming equipment. Efficiency. Industrial water chillers are also widely used in metal processing, electronics, electroplating, textile, vacuum coating, food, chemical, medical, construction and other industries. It is divided into water-cooled type and air-cooled type. The temperature of frozen water ranges from 5°C to 30°C. 1. International brand compressor and high efficiency condenser, evaporator combination; energy saving, low noise, long life. 2. Temperature range: 5°C to 30°C. 3. Refrigerant gas R22; friendly refrigerant gas: R407C, R134A, R404A, etc. 4. By increasing the heat transfer area of the condenser, the condensing unit can operate at high temperature below 45°C 5. Low Noise &High Air Volume Fan. 6. Standard low-pressure pipeline pump, stainless steel pump or high-pressure centrifugal pump can be selected. 7. Microcomputer control, control accuracy: ±1°C. 8. Water-cooled used shel-tube condenser, fast heat conduction, good effect, suitable for high-temperature, water-rich areas. 9. The air-cooled type adopts fin condenser, which has good heat dissipation, easy cleaning and maintenance, and easy installation.

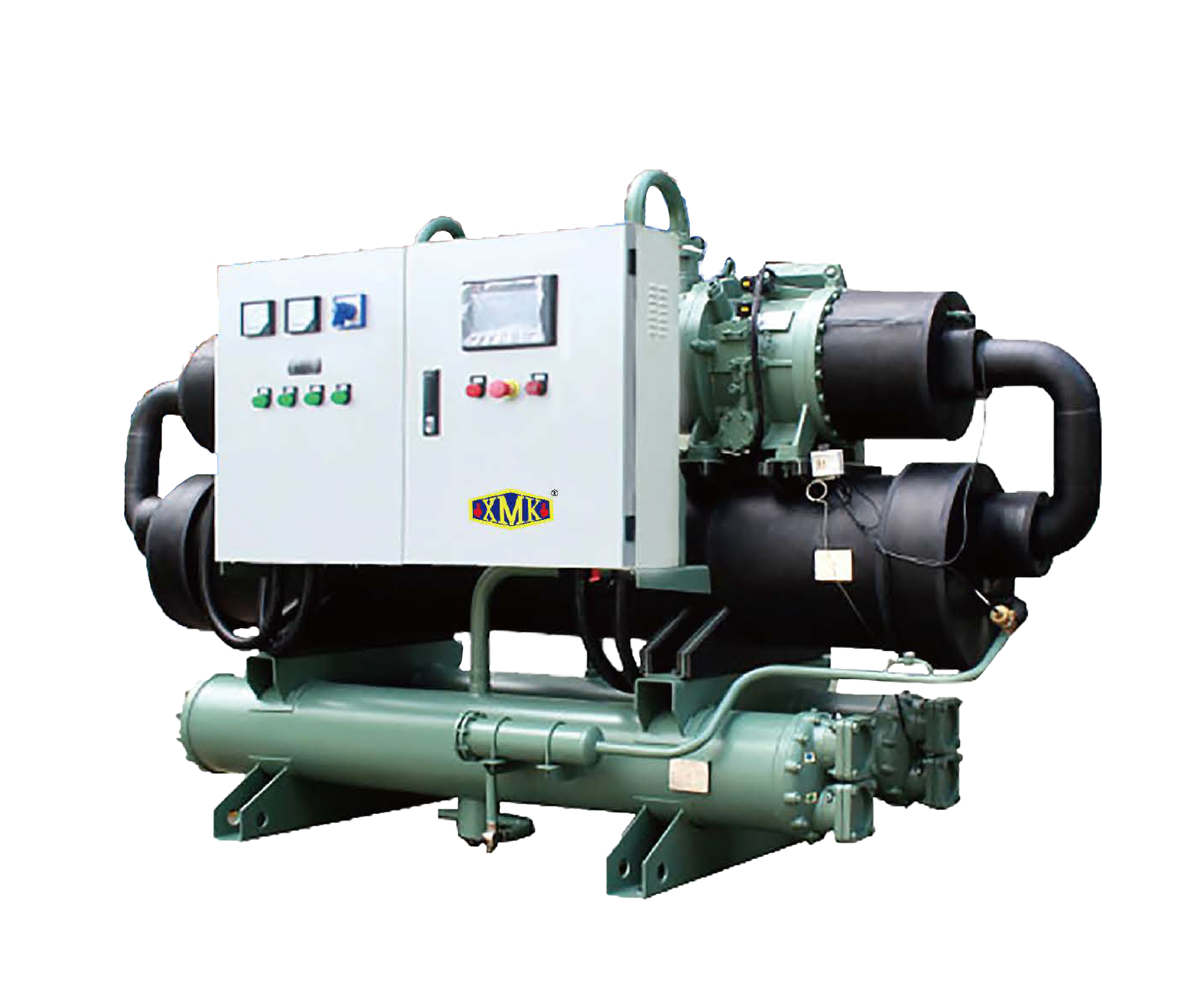

The function of screw chiller: 1. Medium and large-scale industrial cooling. 2. Central air conditioning system. 3. Cold room, greenhouse. Condensing unit features: 1. Adopt German Bizel / Taiwan Han bel semi-closed screw compressor, energy-saving and efficient. 2. High-efficiency slide valve energy control to realize staged or stepless energy control, and the operation is quiet and stable. 3. Advanced patented technology for high-precision processing. 4. Built-in intelligent monitoring and protection, including motor temperature monitoring, phase sequence monitoring, manual reset locking, oil temperature monitoring. Micro-processing control system: 1. The industrial-level PLC unit is centralized control, and the energy-adjusting system of the compressor is matched, so that the matching of the refrigerating capacity of the unit and the cold load can be accurately controlled, the unit is ensured to operate at the optimal efficiency, and the operation cost is reduced. 2. System water shortage, low temperature, high and low pressure, anti-freezing, phase loss, reverse phase, delayed start-up, overload, motor overheating, oil level and other safety protection and treatment functions. Micro-processing control system: 1. Compressor step-down start-up to minimize impact on voltage. 2. Operation balance, safety, small vibration. 3. Compact structure, small footprint, light weight, easy handling and simple installation. 4. Complete various performance debugging before leaving the factory, complete wiring, reduce installation time and cost.

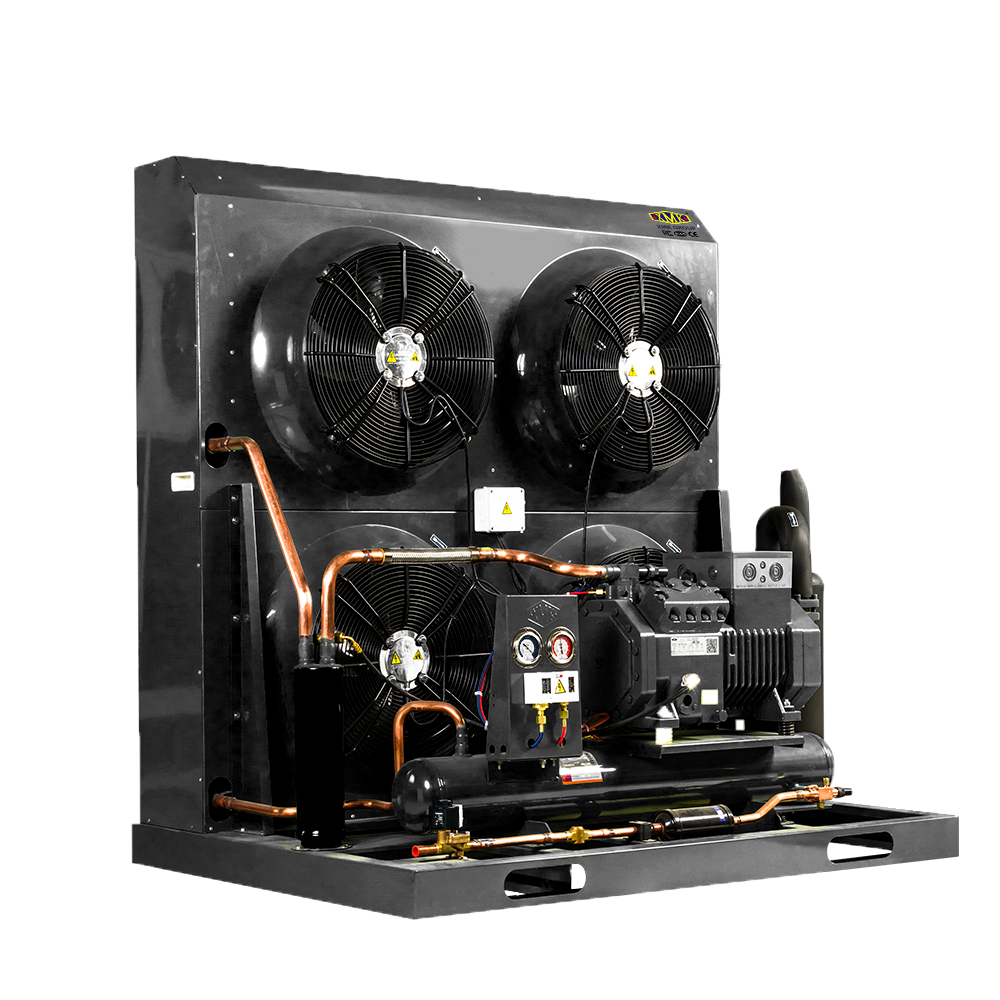

HCU series open-type air-cool condensing units have the following characteristics: 1. Adopted semi-hermetic piston compressors with BITZER or FRASCOLD, It has good quality and high reliability. 2. The air-cooled condenser, compressor and various accessories are installed on an integral frame, which is compact in structure and convenient in operation and maintenance. 3. Adopted high duct condenser with external rotor fan, which has low noise and high efficiency. 4. The product series is complete, It has high, medium, low temperature and quick frozen working conditions design. It can meet the needs of refrigeration equipment at various temperatures. 5. It can meet the requirements of R22, R404A, R507A. R448A. R449A and other refrigerants

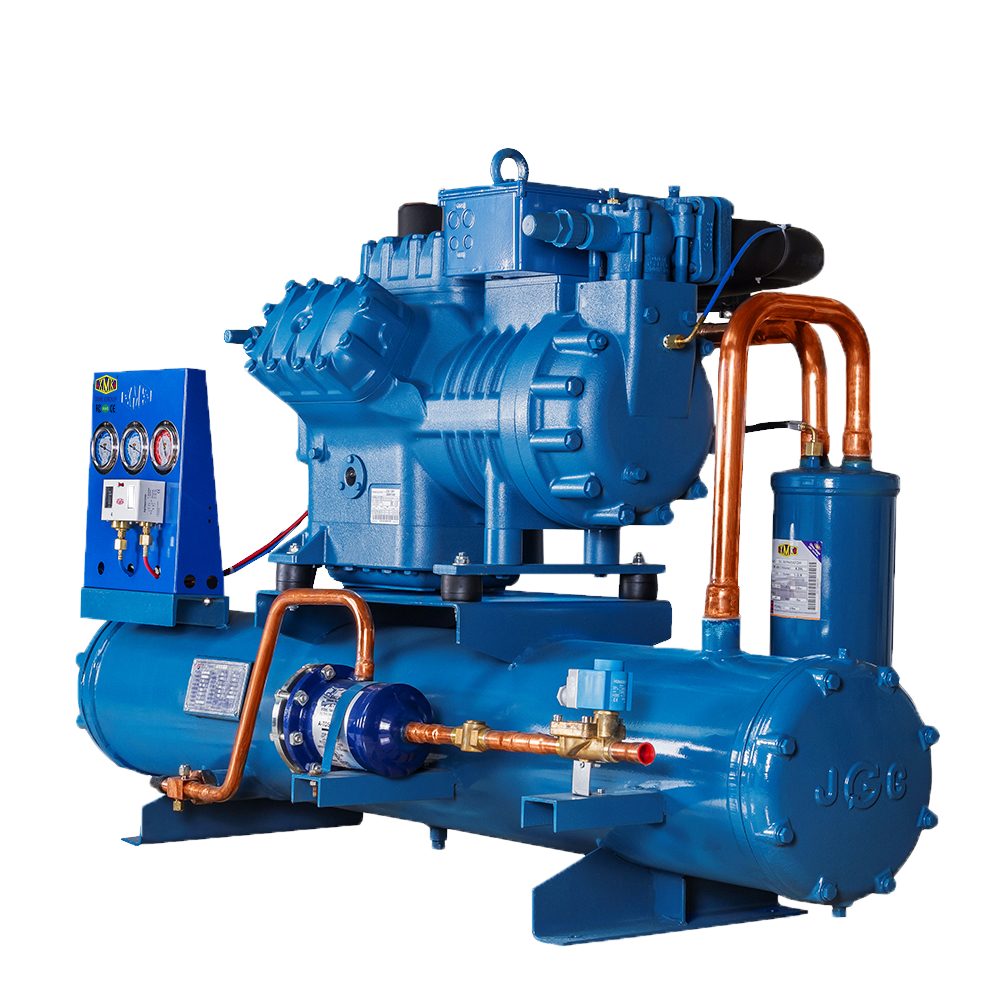

OUBS series water-cool condensing units have the following characteristics: 1. Adopted semi-hermetic piston compressors with BITZER or FRASCOLD, It has good quality and high reliability. 2. Adopted high efficiency shell-tube type water condenser with good cooling effect and low condensation temperature. 3. The condenser, compressor and various accessories are installed on an integral frame, which is compact in structure and convenient in operation and maintenance. 4. The product series is complete, suitable for a wide range of temperatures. It has medium, low temperature and quick frozen working conditions design. It can meet the needs of refrigeration equipment at various temperatures. 5. It can meet the requirements of R22, R404A, R507A, R448A, R449A and other refrigerants.

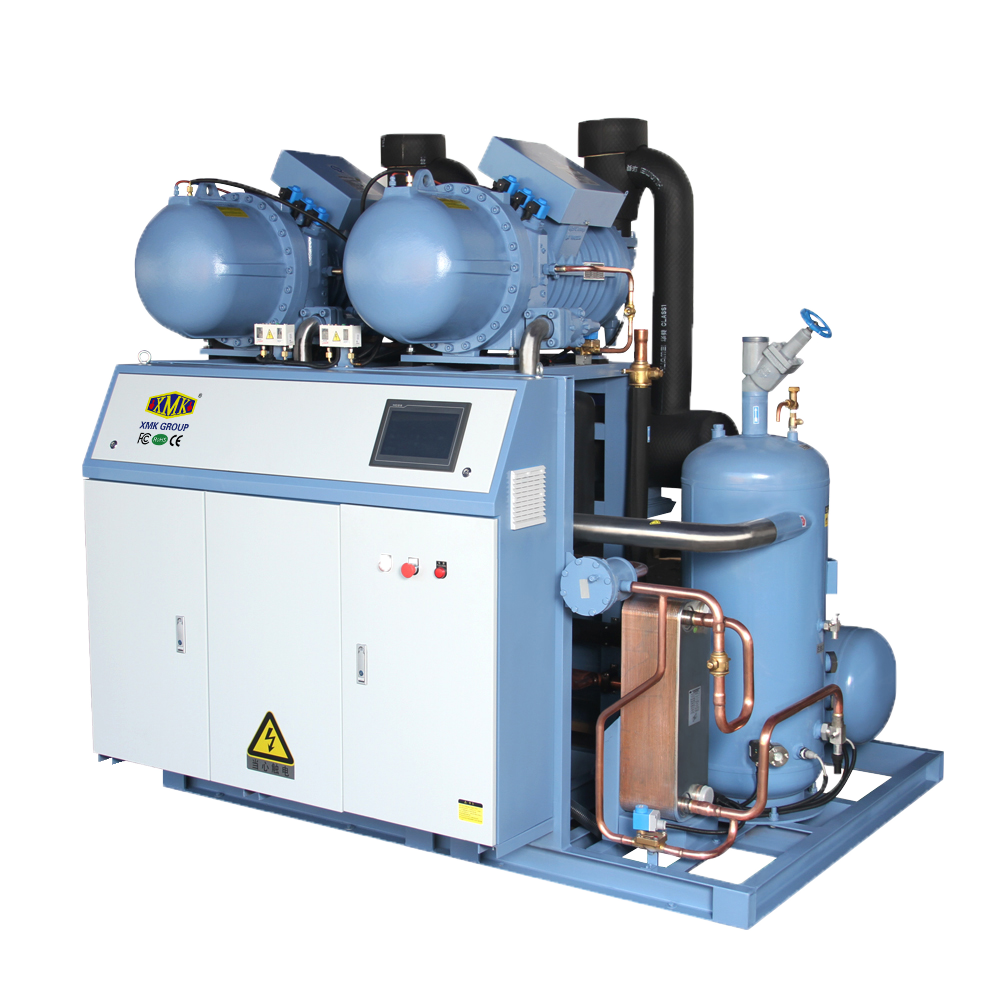

XRW series semi-hermetic screw unit is mainly used in cold storage projects with large cooling capacity requirements. 1. Adopts Refcomp SW3 series screw compressor with single unit and parallel unit. 2. The series of products include two application series of medium-temperature and low-temperature units. The medium-temperature unit mainly meets the requirements of cold storage at about 0°C, while the low-temperature unit mainly meets the requirements of low-temperature refrigeration storage at -20°C and quick-frozen storage at -35°C. 3. The standard design of the unit adopts the form of water cooling, adopts high efficient shell and tube type water cooling condenser, and is equipped with a separate liquid receiver. 4. The low temperature unit is equipped with an economizer system and an oil cooler system. 5. The unit is controlled by Siemens PLC and the key electrical components are controlled by Schneider. With compressor start and stop, energy regulation, oil cooling system, economizer system, cooling water pump and cooling tower fan control and various protection functions. 6. The unit standard uses R404A or R507A refrigerant.

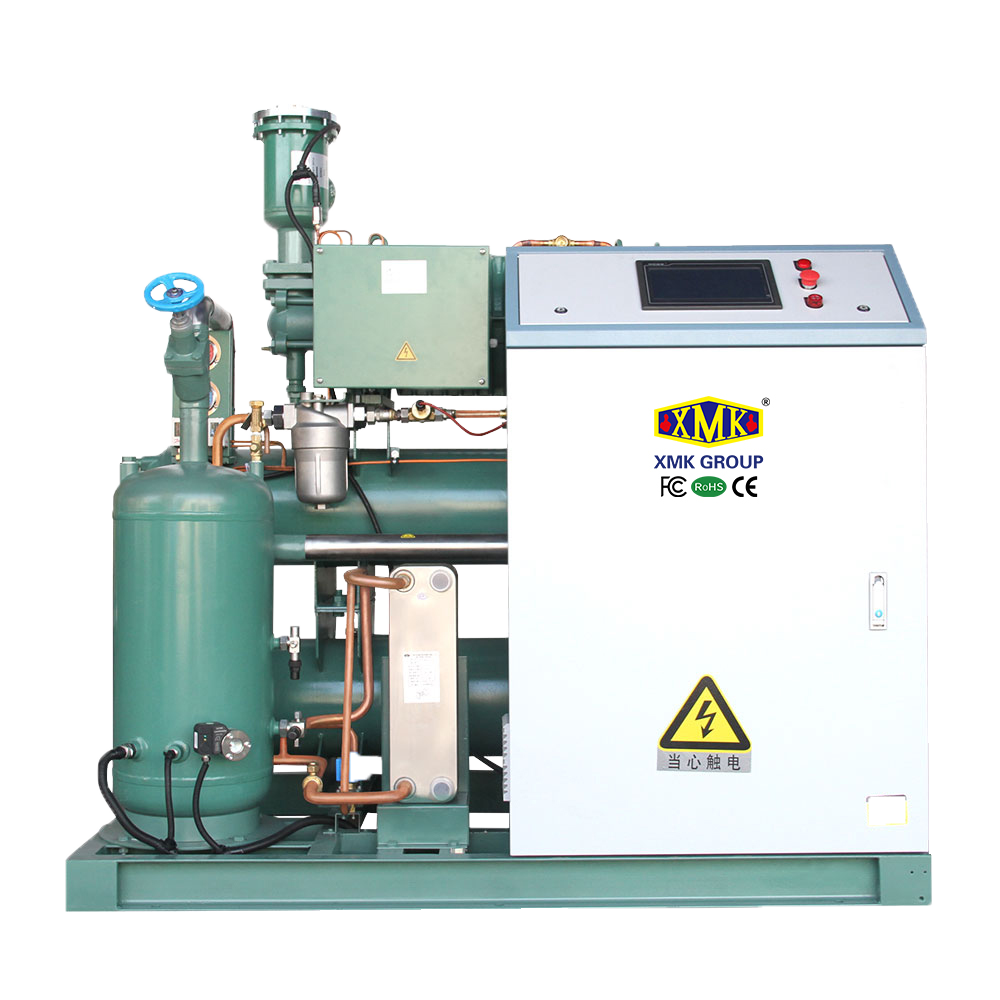

XBW series semi-hermetic screw unit is mainly used in cold storage projects with large cooling capacity requirements. 1. Adopts BITZER HSN series low screw compressor with single unit and parallel unit. It mainly meets the requirements of low-temperature refrigeration storage at -20°C and quick-frozen storage at -35°C. 2. The standard design of the unit adopts the form of water cooling, adopts high efficient shell and tube type water cooling condenser, and is equipped with a separate liquid receiver. 3. The unit is equipped with an economizer system and an oil cooler system. 4. The unit is controlled by Siemens PLC and the key electrical components are controlled by Schneider. With compressor start and stop, energy regulation, oil cooling system, economizer system, cooling water pump and cooling tower fan control and various protection functions. 5. The unit standard uses R404A or R507A refrigerant.
A packaged commercial condensing unit from the local XMK product collection, presented with an enclosed fan-cooled layout for general refrigeration-system applications.

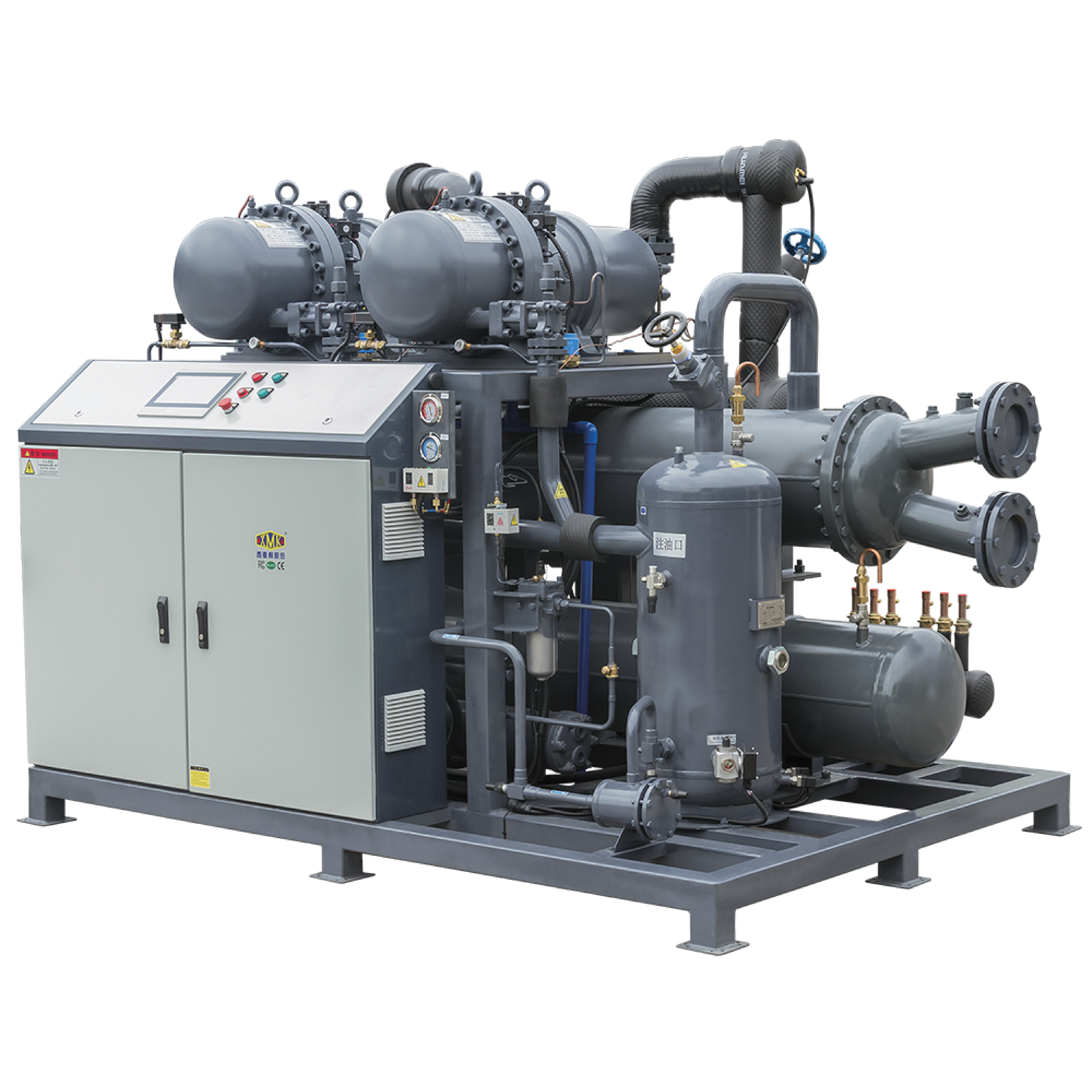

An XFSW-series packaged refrigeration unit represented by local XMK product artwork. The neutral catalogue entry is retained because no matching official web or 2025 catalogue page was found.

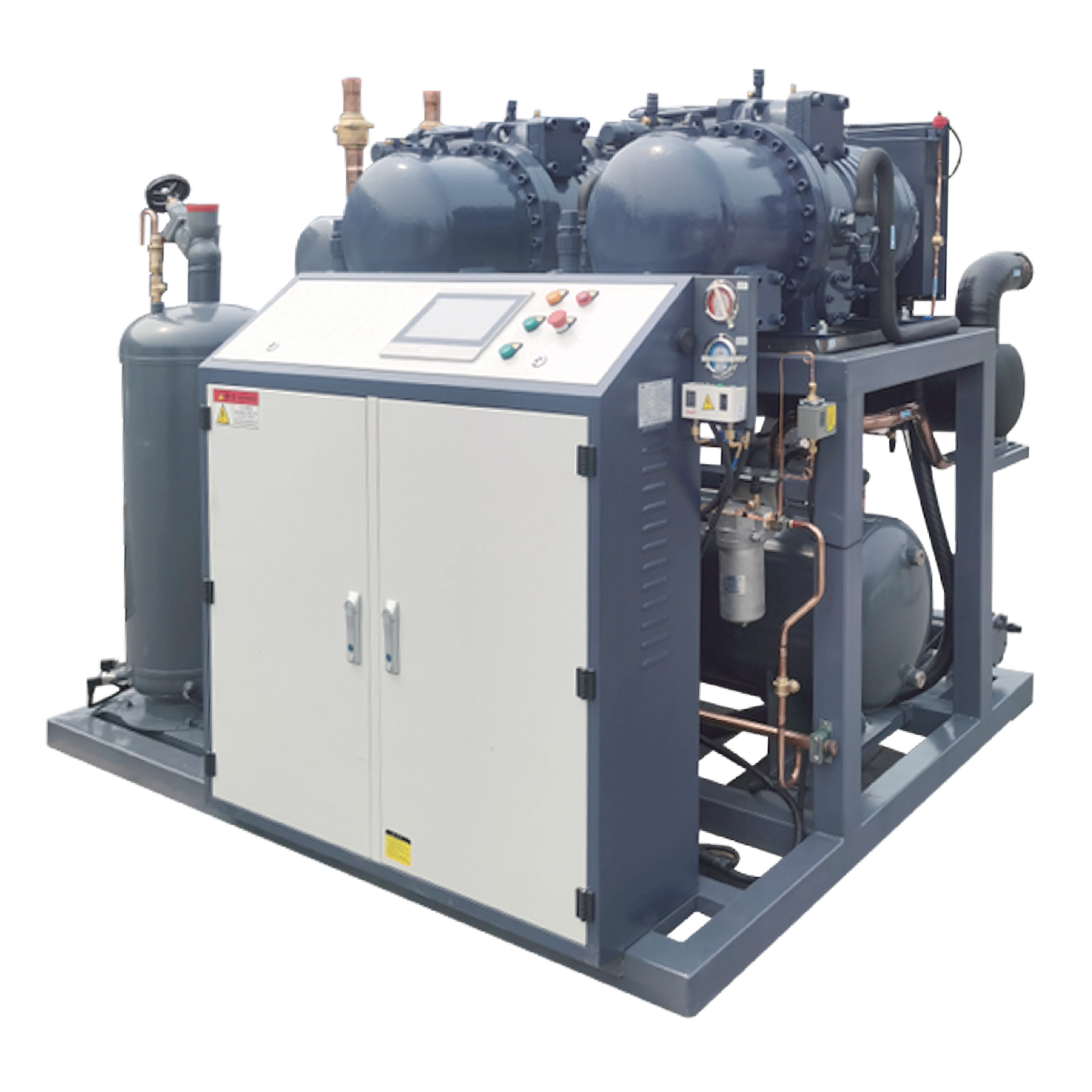

An XHZ-series packaged refrigeration unit represented by local XMK product artwork. The neutral catalogue entry is retained because no matching official web or 2025 catalogue page was found.

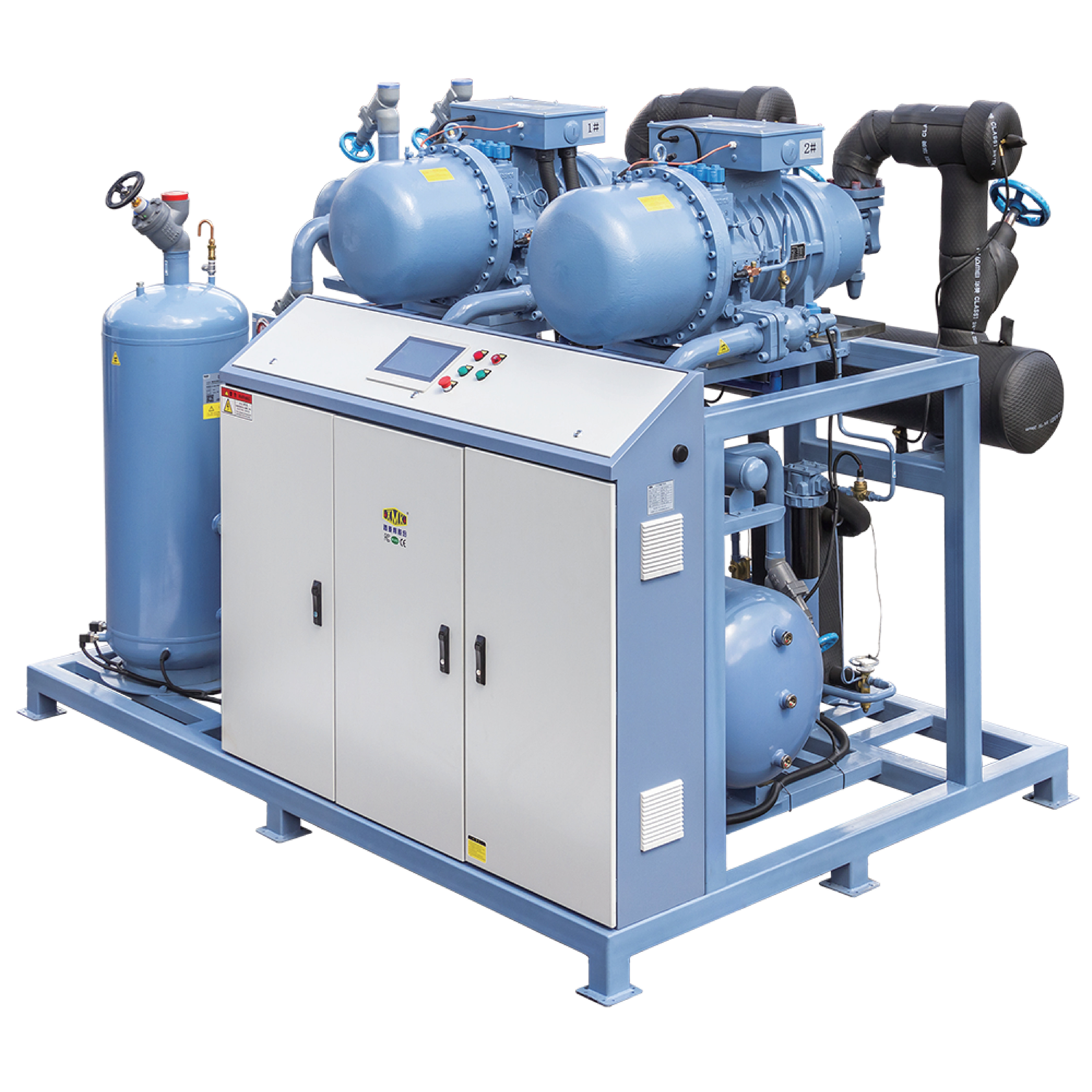

An XRZ-series packaged refrigeration unit represented by local XMK product artwork. The neutral catalogue entry is retained because no matching official web or 2025 catalogue page was found.

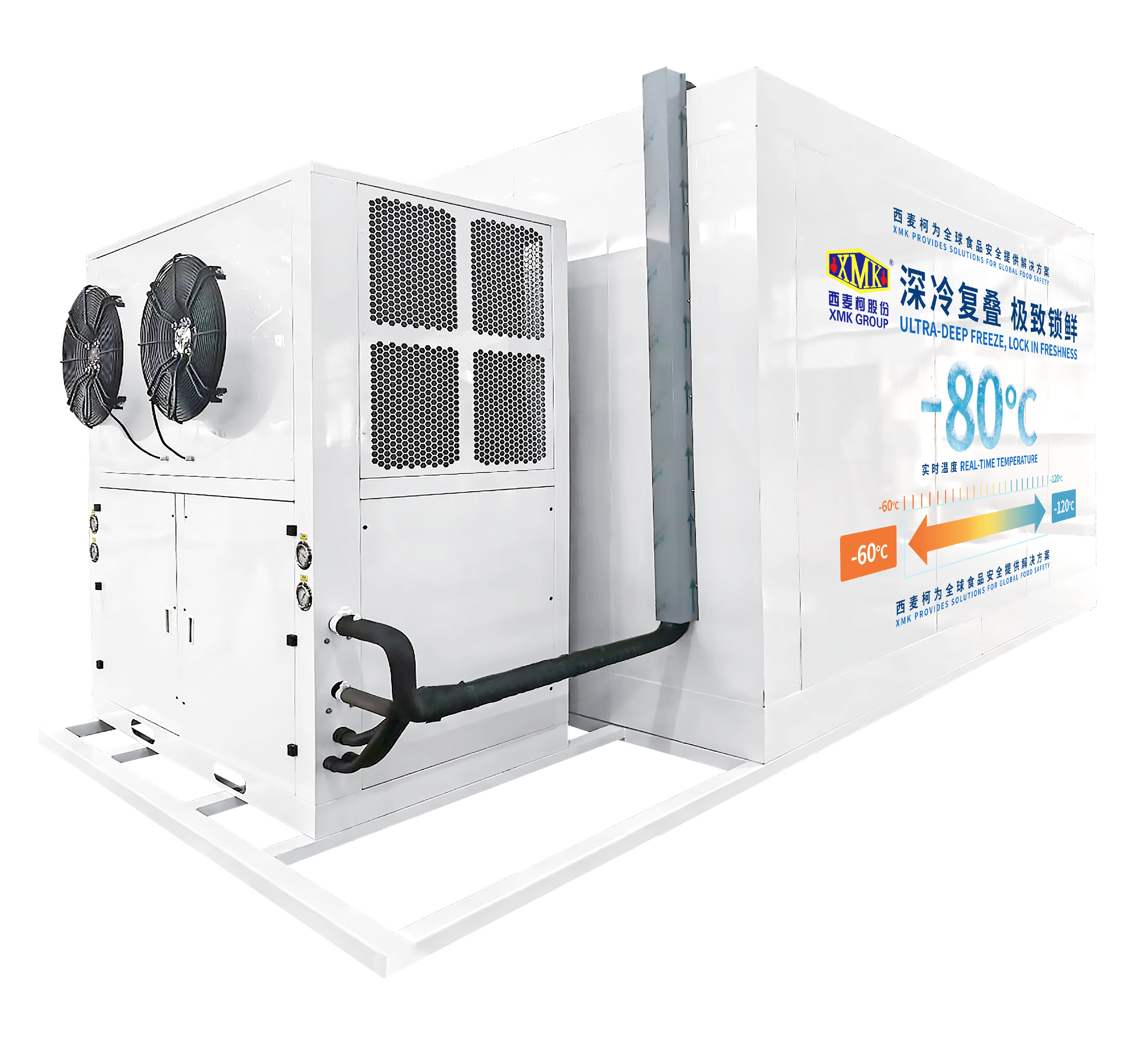

An XMK ultra-deep-freezing solution represented by local product artwork, combining a packaged refrigeration system and insulated chamber for very-low-temperature food freezing.

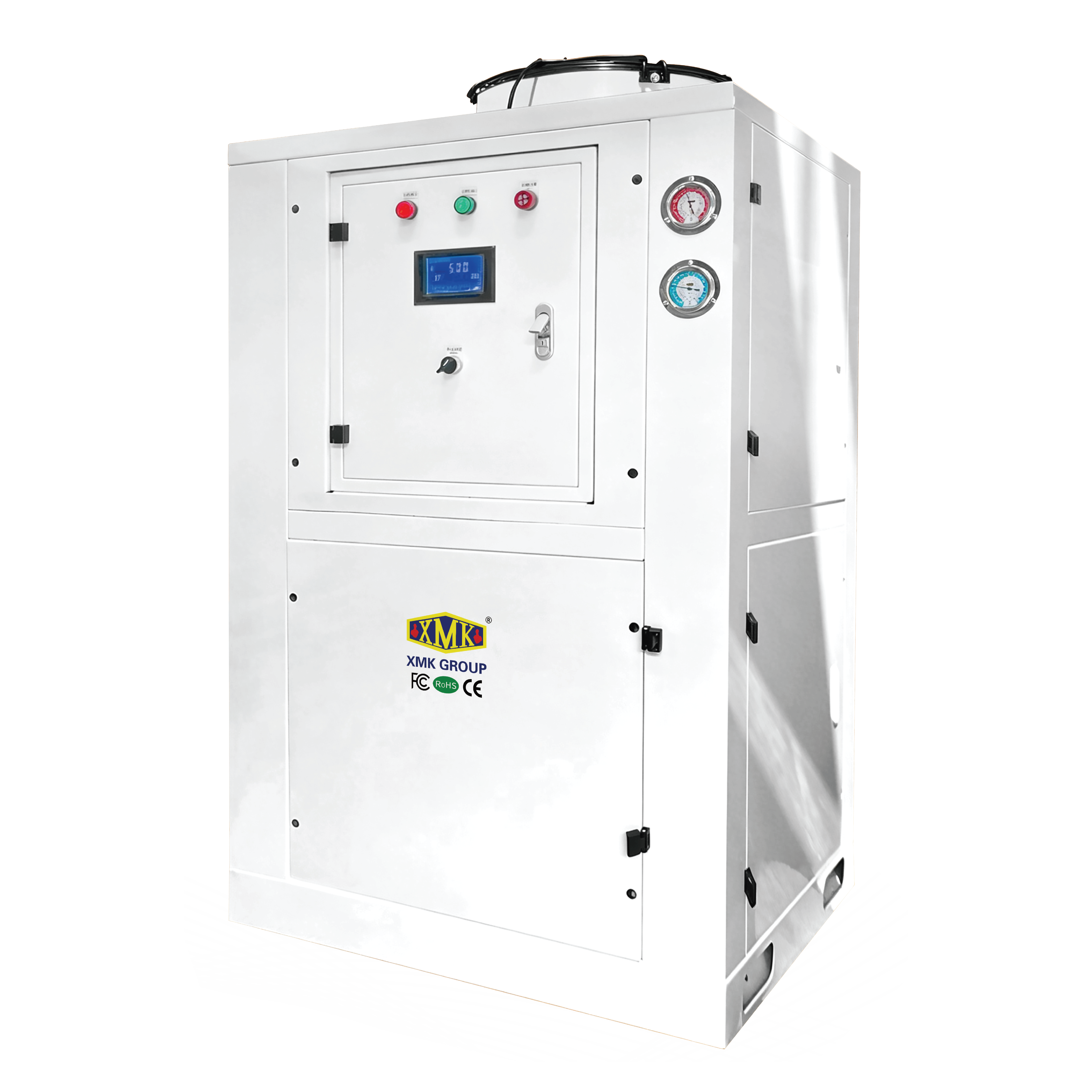

An XMK ice-slurry system represented by local product artwork for producing a pumpable ice-and-liquid mixture in process and food-cooling applications.
