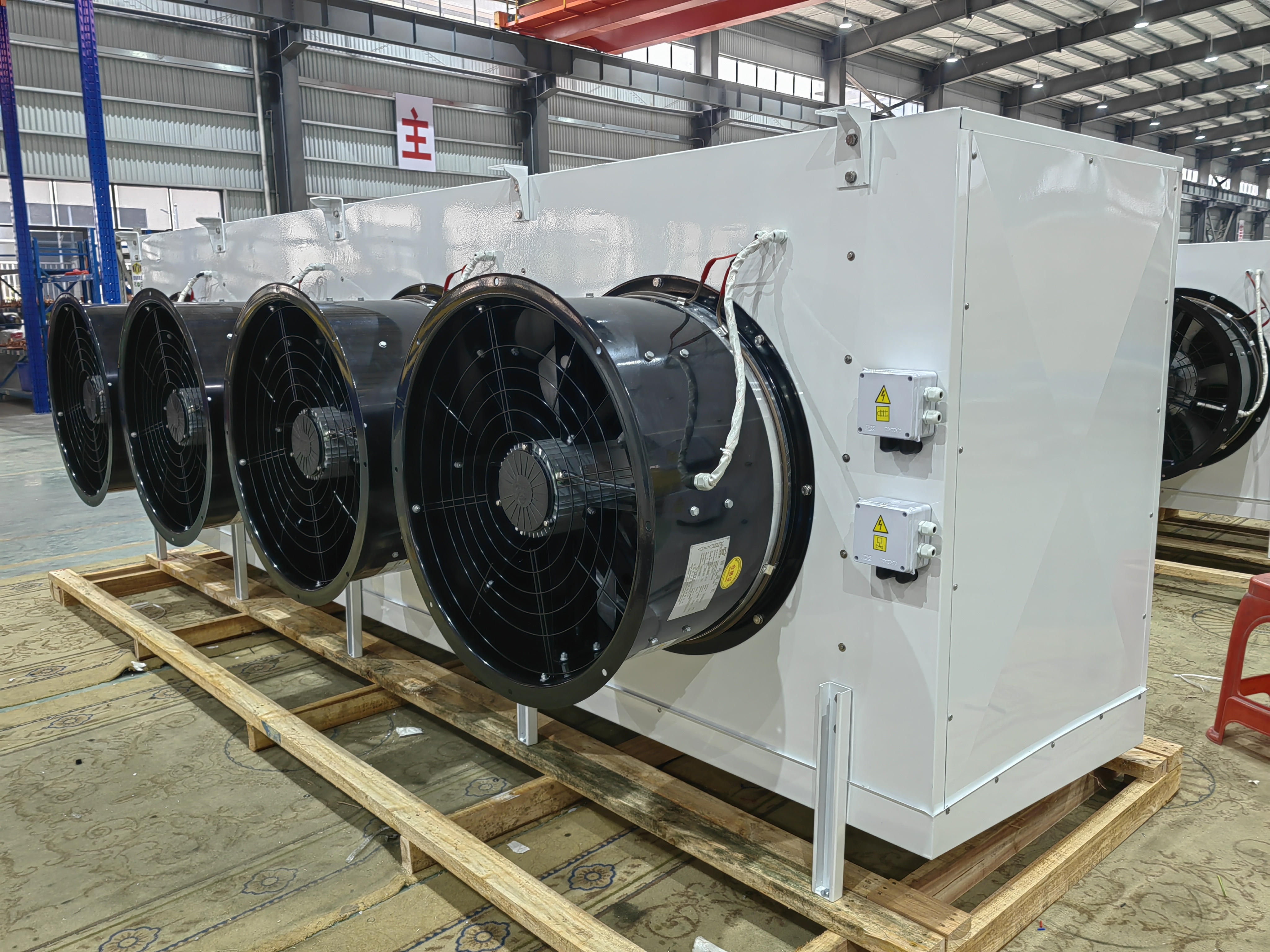

Series Air Cooler with Long Ram and Water Defrosting

CWS/EWS series air coolers are mainly designed with long raw. CWS is mainly used in general medium and large cold storage, and EWS is mainly used in explosion-proof cold storage . 1. Casing: Adopt high-quality steel plate with powder coating RAL9003. Has strong corrosion resistance. 2. Heat exchanger coil: Copper tubing 1 5 , Spacing 50X50. Corrugated aluminium fins, fin spacing 4.2mm, 6.4mm &9.0mm. 3. Fans: CWS series adopts ordinary motor. EWS series adopts Exd I| BT explosion-proof motor, can be used in zone 1 and 2 district-level other anti explosive mixed gas space. Fan blade ⌀500 and ⌀600. 4. Water Defrosting: Using water defrosting method, the defrosting time is short, and the little effect on cold room temperature. Sieve pore type defrosting water pan and inner & outer water baffles are used to prevent water spraying into cold storage and wind blades during defrosting. 5. It can meet the requirements of R404A, R507A. R448A, R449A. R134a. R22 and other refrigerants.
