LS

LS

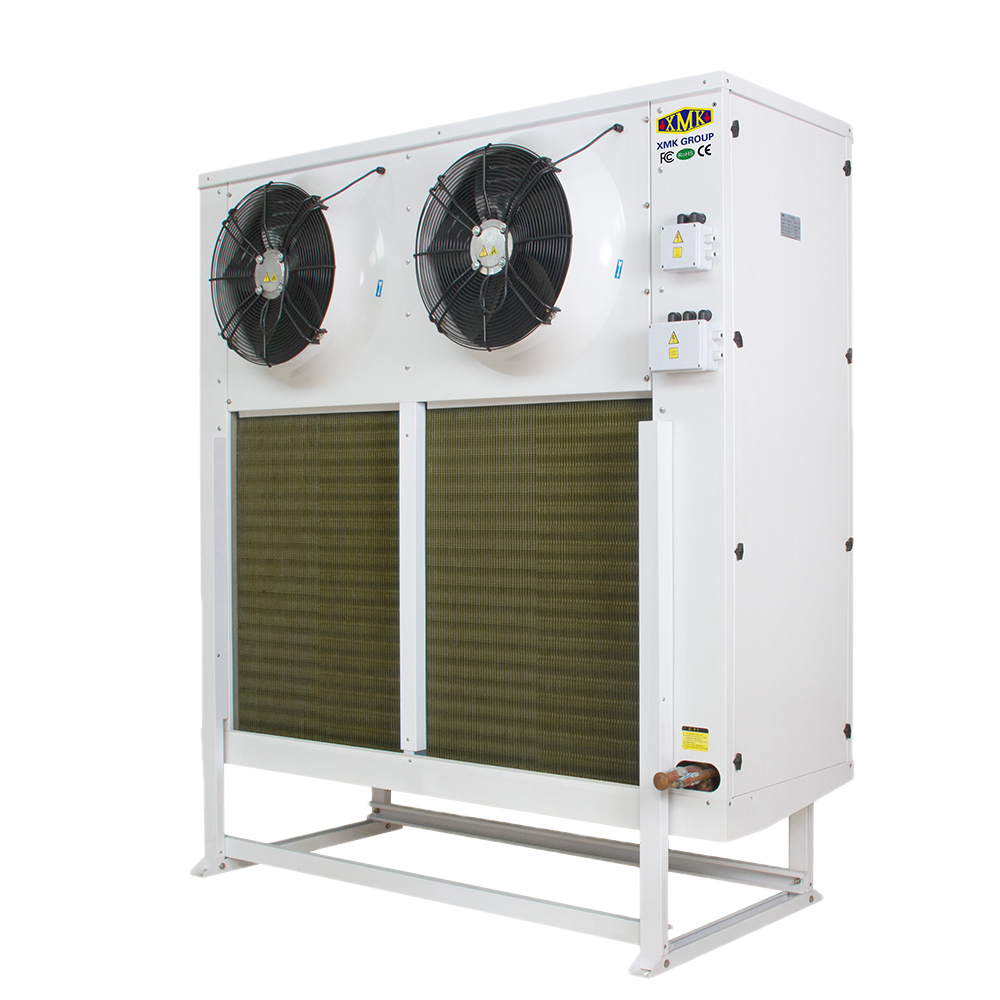

Series Ground-Type Air Cooler

1. Casing: Adopt high-quality steel plate with powder coating RAL9003; Has strong corrosion resistance; Both side plates and external drip tray are convenient to disassemble. 2. Heat exchanger coil: Copper tubing ⌀15 , Spacing 50X50; Corrugated aluminium fins, fin spacing 6.4mm, 9.0mm &12.0mm 3. Fans: Axial fans with fan blade ⌀500 and ⌀630 , Working temperature -40°C to 60°C; Independent Fans junction box; 4. Electric Defrosting: Using stainless heating pipe, installed in the middle of coil and inner water plate; Independent electric heating pipe junction box. 5. It can meet the requirements of R404A, R507A, R448A, R449A, R22 and other refrigerants.
