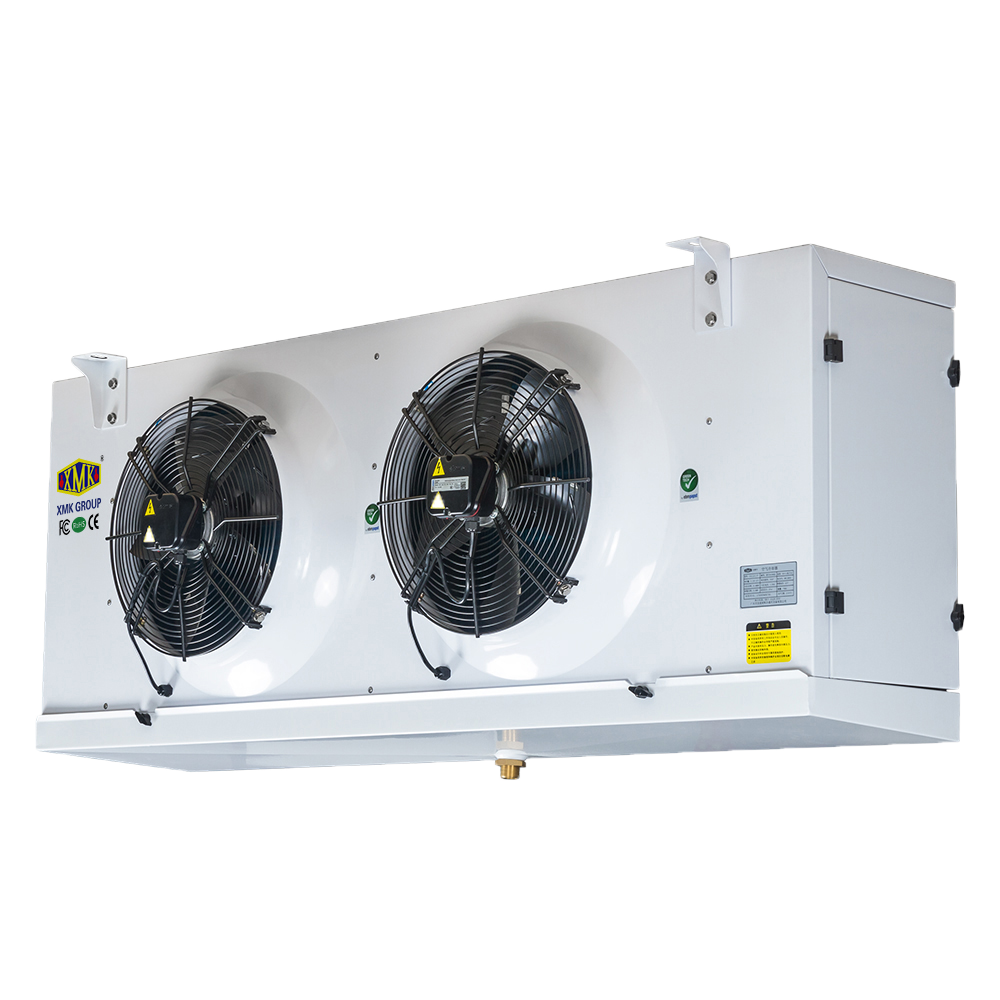

Series Ceiling Air Cooler

1. Casing: Adopt high-quality steel plate with powder coating RAL9003 Hinged structure is adopted for both side plates and external drip tray, which is convenient and quick to operate 2. Heat Exchanger Coil: copper tubing ⌀15, spacing 50X50, square arrangement; Corrugated aluminium fins, fin spacing 4.2mm and 6.4mm and 9.0mm; 3. Fans: Axial fans with High wind circle, working temperature -40°C to 60°C. High air duct design with Integral stretching, good ventilation effect, further airthrow, lower noise. Fans individually connected to junction box. Fan blade ⌀300, ⌀350, ⌀400, ⌀500, ⌀630, standard 4-pole motor; 4. Defrosting: Standard use of electric defrosting, stainless heating pipes installed in the middle of coil and inner water plate. Independent electric heating tube junction box. Hot gas defrosting or coil hot gas defrosting can also be used. 5. It can meet the requirements of R404A, R507A, R448A, R449A, R134a, R22 and other refrigerants.
