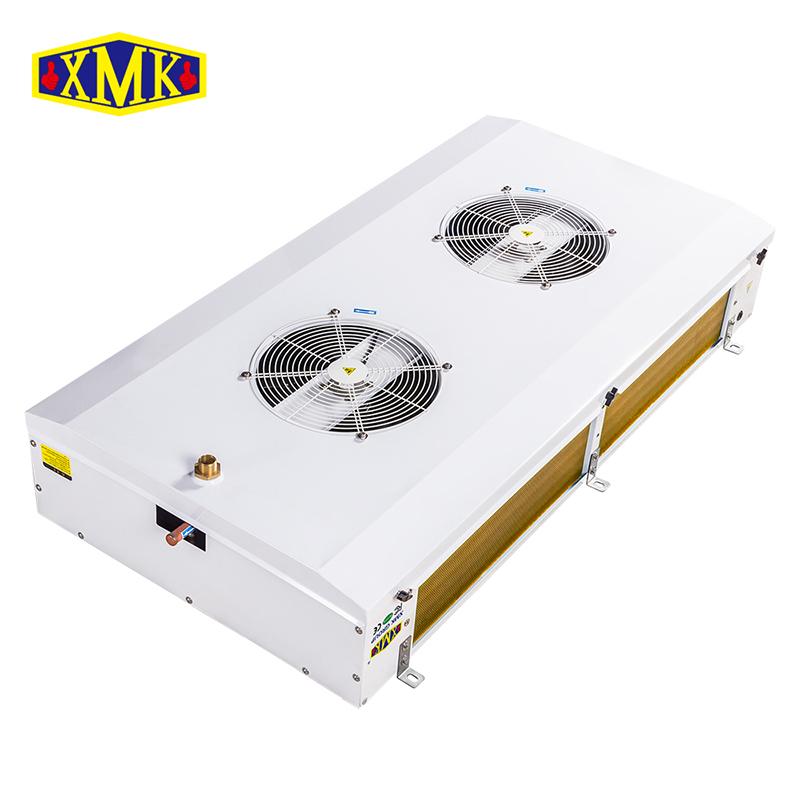

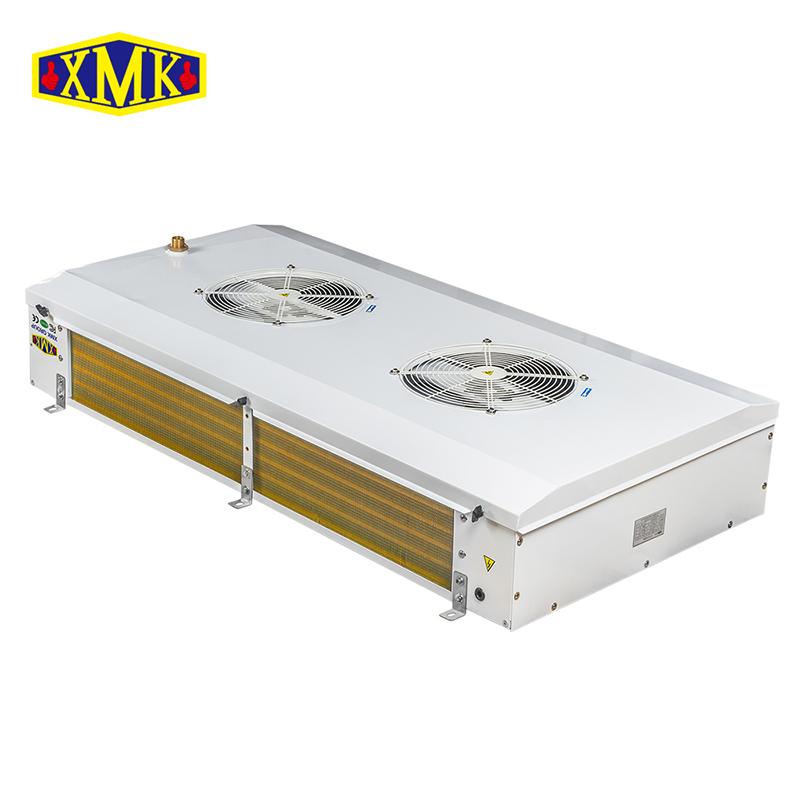

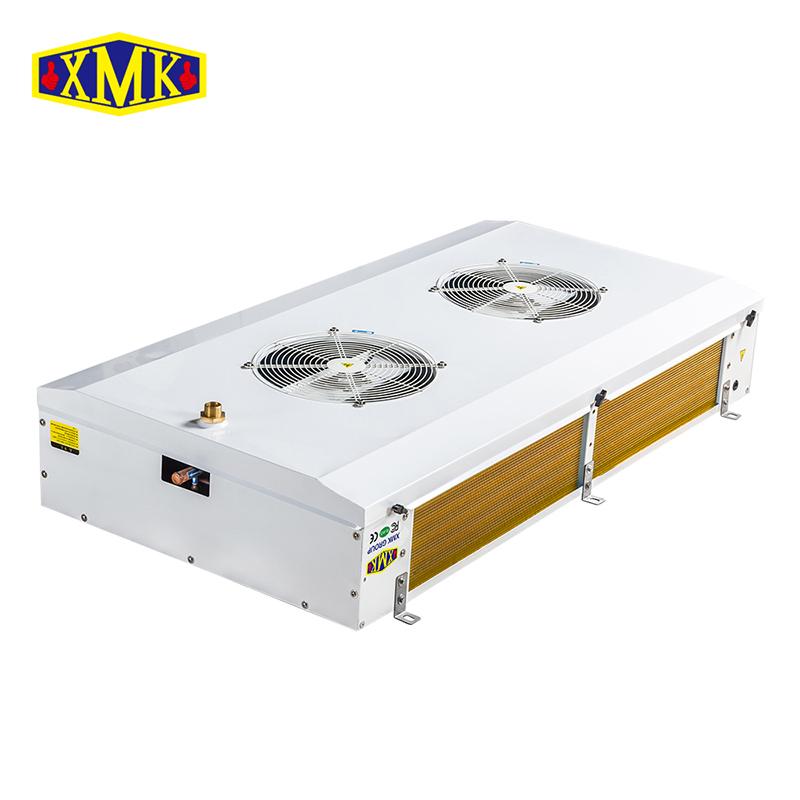

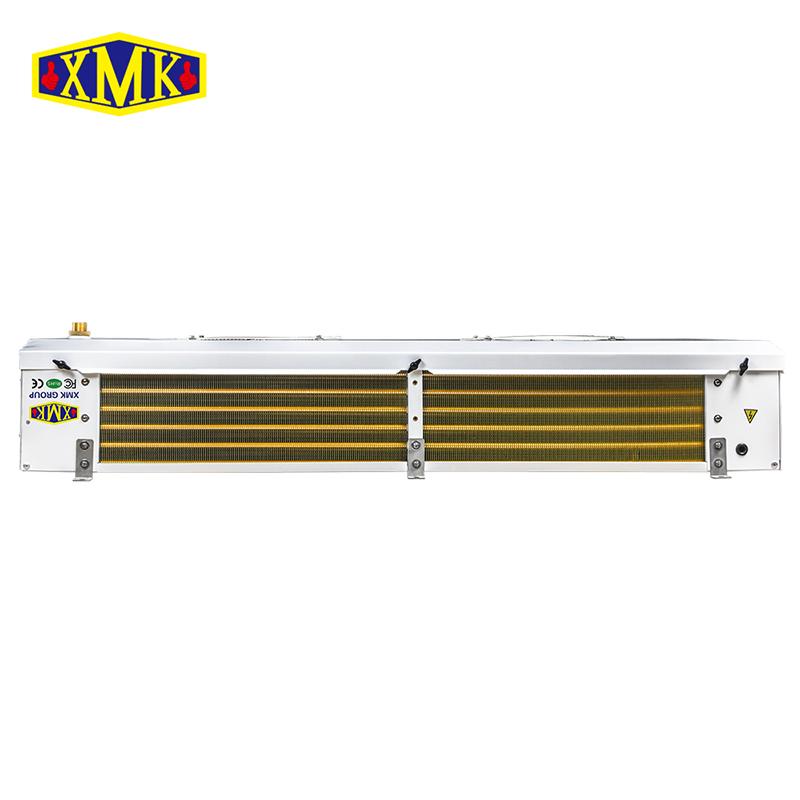

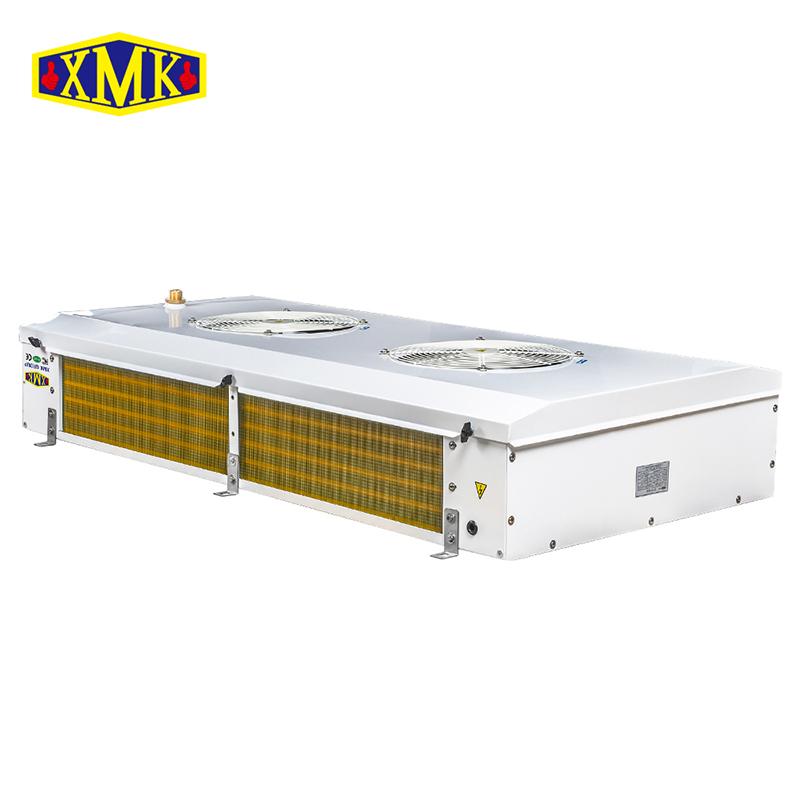

Series Commercial Dual-Discharge Cooler

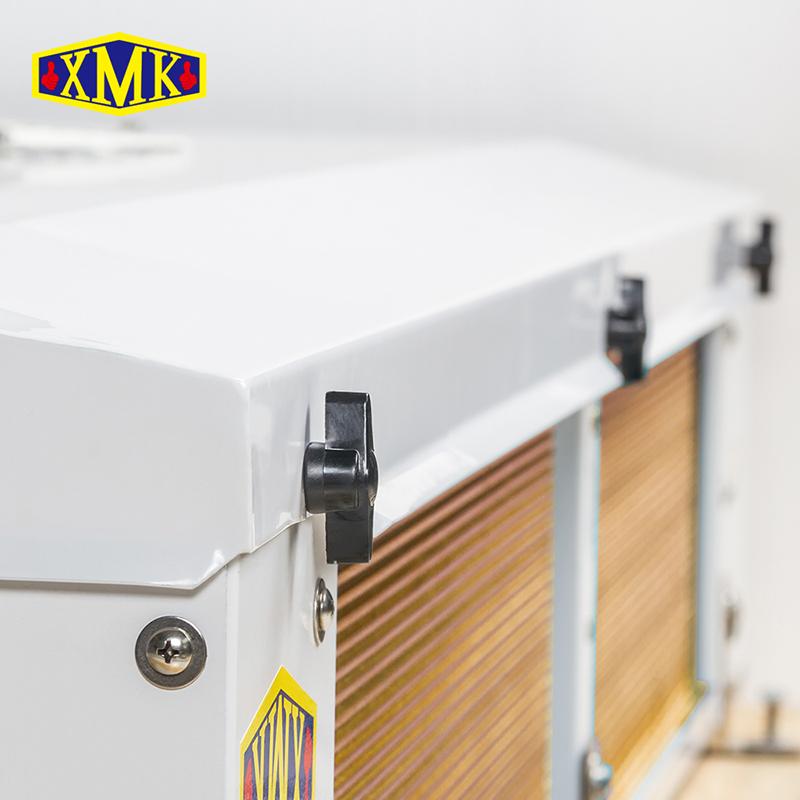

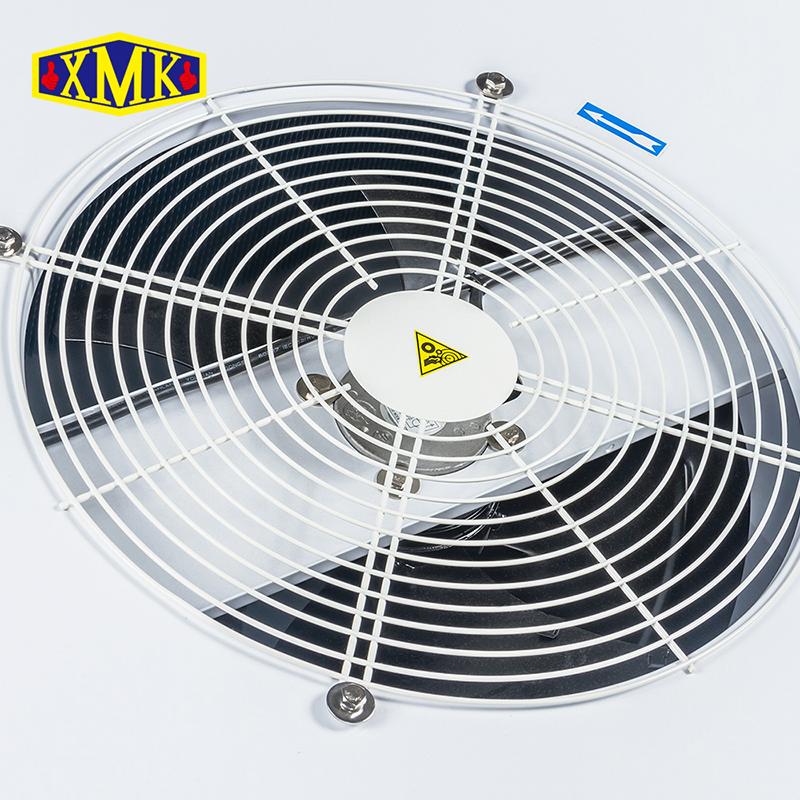

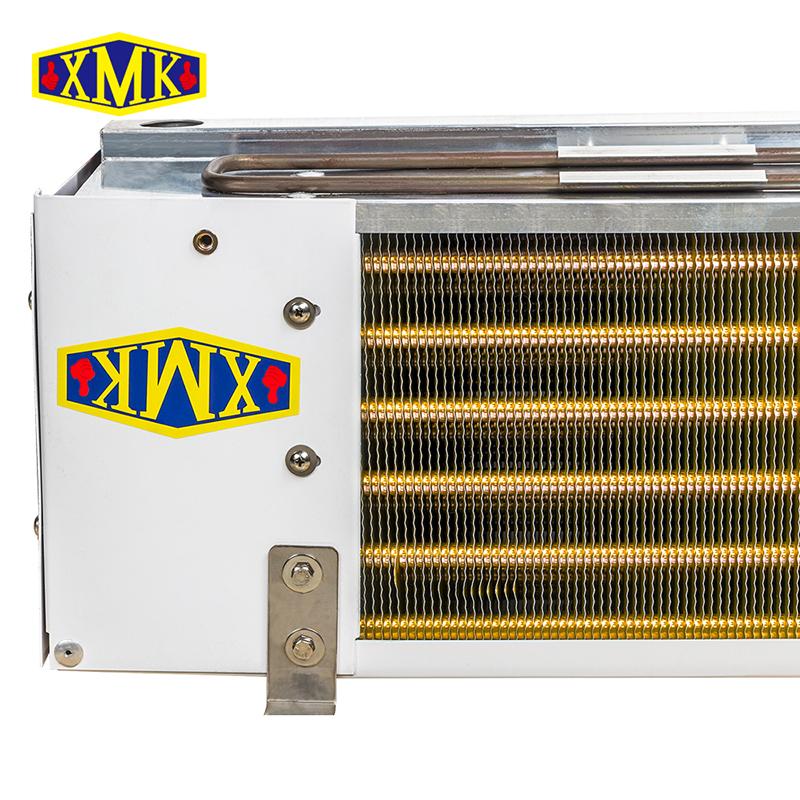

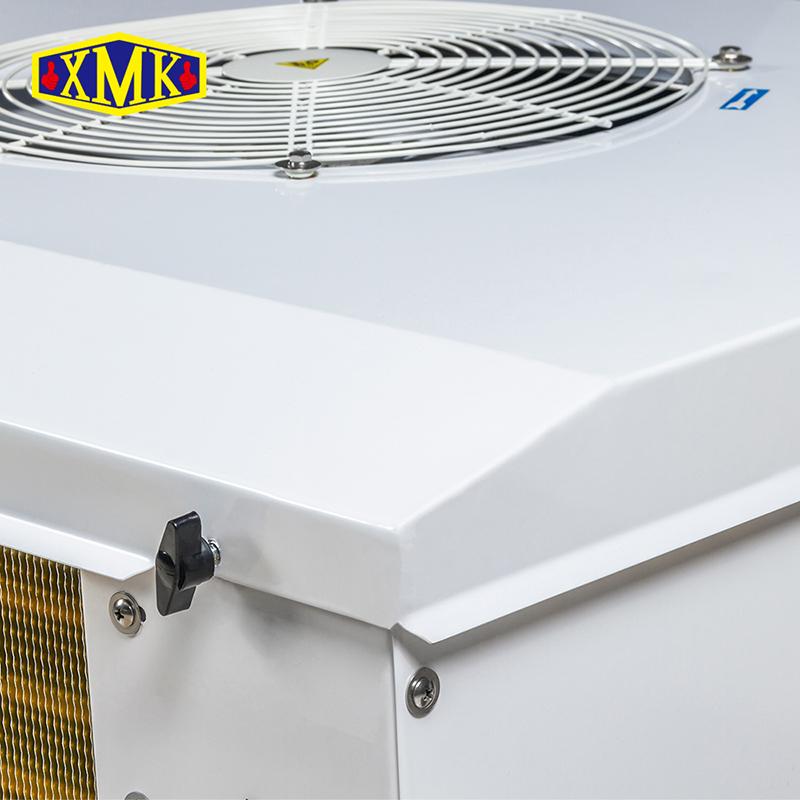

CDB series commercial dual discharge coolers is mainly used in small operating rooms. 1. Casing: Al-Mg alloy sheet with powder coating RAL9003, strong anti-corrosion performance and light weight Outer drip tray adopts integral hinged structure, easy to clean and operate. 2. Heat exchanger Coil: Copper tubing $12, Spacing 38.1X33; Corrugated aluminium fins, fin spacing 4.2mm &6.4mm. 3. Fans: Axial fans, working temperature -40°C to 60°C, fans individually connected to junction box. Fan specification 350, number from 1to 4, fan motors are divided into 4-poles and 6-poles to meet different noise requirements. 4. Defrosting: Standard use of electric defrosting, stainless heating pipes installed in the middle of coil and inner water plate. Independent electric heating tube junction box. Hot gas defrosting or coil hot gas defrosting &water plate electric defrosting can also be used. 5. It can meet the requirements of R404A, R507A, R448A, R449A, R134A, R22 and other refrigerants.
